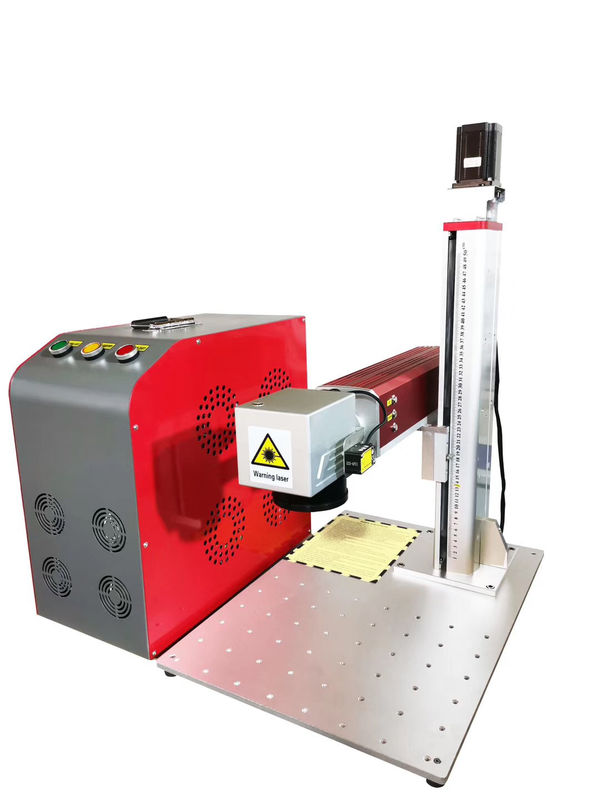

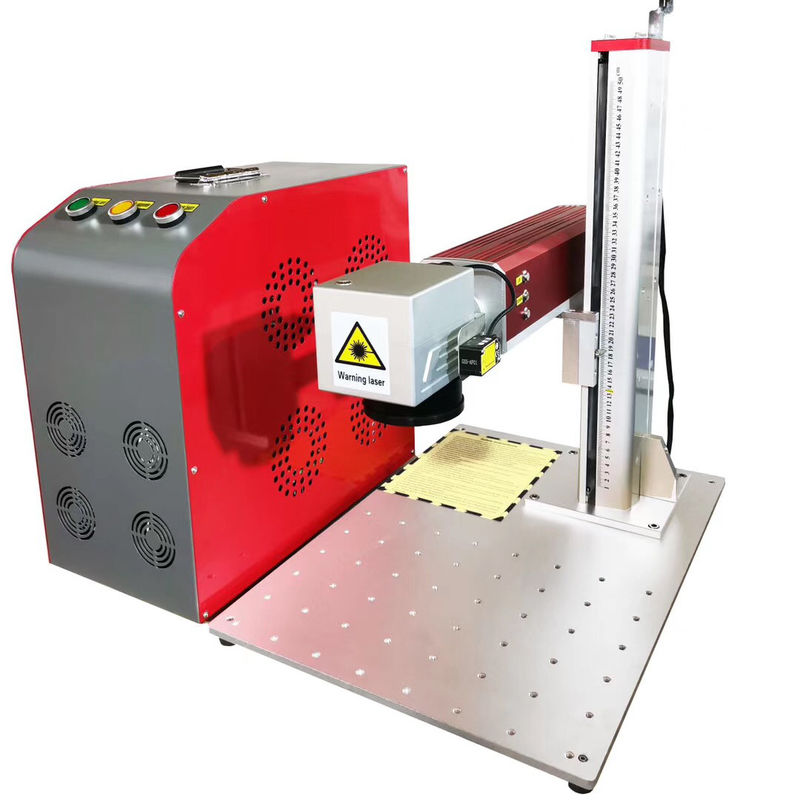

Product Features
The UV laser beam is very small, the heat affected zone is very small, and the absorption rate is higher for the wider range of materials. Therefore, UV laser has a wider range of material adaptability. It is more suitable for ultra fine marking of various materials.
Product Parameters
| UV Laser Marking Machine for Medical Centre | ||
| Laser Machine Features | Machine Body | complete aluminium structure/stainless |
| Laser Type | UV laser | |
| Output Power | ≥3W | |
| Laser Wave | 355um | |
| Scanning System | high precision double scanning system | |
| Marking Speed | ≤9000mm/s | |
| Controller | windows | |
| Operation System | windows system | |
| Cooling System | Air cooling | |
| Laser Marking Parameters | Focusing Lens | focus distance 150mm(optional) |
| Marking Line Type | dot-matrix,vector font can be printing | |
| Min line Size | 0.01mm | |
| Repeated Positioning Accuracy | 0.003mm | |
| Marking Area | 110mm×110mm(Optional) | |
| Positioning | red light positioning | |
| Line Printing | multi-line within marking size | |
| Production Line Speed | 0~230m/min (based on different materials) | |
| File Format | PLT | |
| Barcode | CODE39,CODE128,CODE126,QR, | |
| Machine Parameters | Power Supply | 110-240W |
| Power Consumption | 1100W | |
| N.W | 30KG | |
Advantages
German laser technology, independent research and development design, German 100-class clean room, full set of German production process.
UV laser source life over 5000 hours.
Laser source, control box, dual-load connector connection, separable, unlimited extension.
Excellent laser beam quality, M2<1.2. High beam pointing stability.
EZCAD / Marking Mate marking software, easy operate / powerful function.
Application
Cosmetics, pharmaceuticals, food and other polymer bottles’ surface. Marking effect is fine, clear and solid, which is better than the ink-jet printing and no pollution produced. Also used in marking and dicing flexible PCB board, drilling tiny hole or blind-hole on
silicon wafers, two-dimensional coding on LCD, glass container surface, metal surface
coating, plastic keys, electronic components, gifts, communication equipment, construction.
Packaging & Shipping
FAQ
Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual . If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
