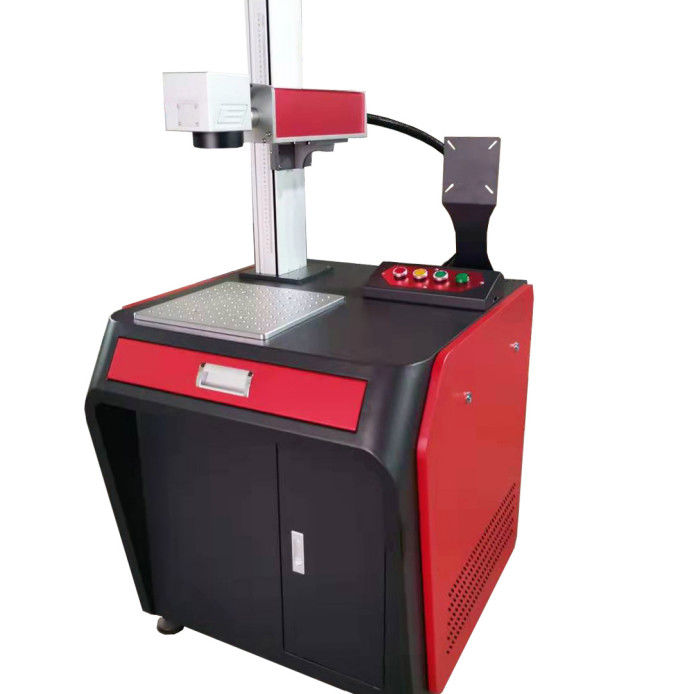

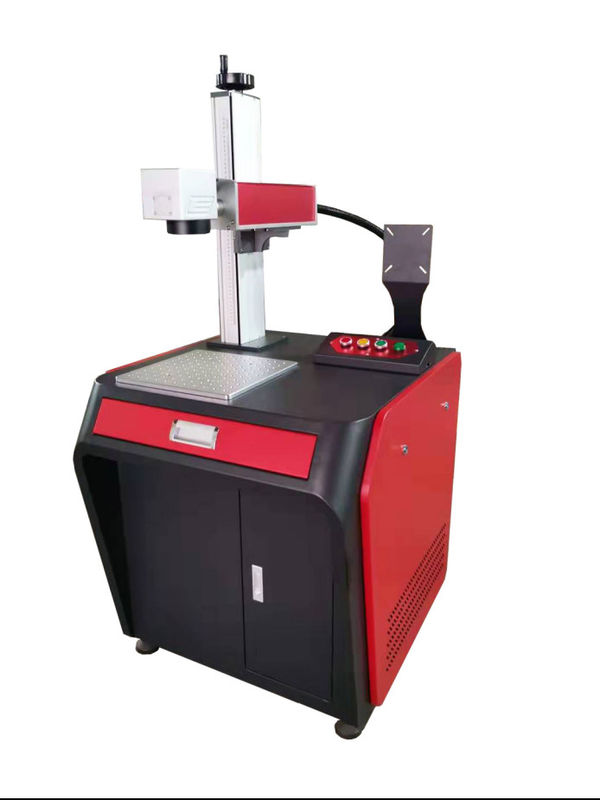

Portable 5W 355nm Uv Laser Engraver For Glass Plastics Ceramics
Product Introduction
UV laser marking machine can automatically mark dates, bar codes and QR codes.
Product Parameters
| DPX-UV3 | DPX-UV5 | |
| Wavelength | 355nm | 355nm |
| Output power | >3W@30KHz | >5W@40KHz |
| Maximum pulse energy | 0.1mJ@30KHz | 0.12mJ@40KHz |
| Pulse Repetition Frequency | 1-150KHz | 1-150KHz |
| Pulse duration | <15ns@30KHz | <18ns@40KHz |
| Average power stability | <3% | <3% |
| Spatial mode | TEM00 (M²< 1.5) | TEM00 (M²< 1.5) |
| Polarization ratio | >100:1 Horizontal | >100:1 Horizontal |
| 1/e2 beam diameter at output | 0.7mm | 0.8mm |
| Beam circularity | >90% | >90% |
Advantages
(1) Ultraviolet laser has a narrow pulse width and small thermal influence to help generate peak power. The higher the peak power, the perfect mark can be achieved on some relatively hard materials.
(2) Higher pulse stability, that is, better laser pulse consistency will produce the same engraving effect, so UV marking is very suitable for precise uv marking. The higher pulse repetition frequency can meet the needs of fast marking and high production efficiency.
(3) High photoelectric conversion efficiency, low energy consumption and long service life.
Applications
1. Laser Marking
2. Micro hole machining
3. Ceramic cutting
4. Thin film etching
5. Wafer cutting
Packaging & Shipping
FAQ
Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual . If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
Our services cover all industries and reach all parts of the world.
