High Light
5m Laser Cleaning Machines
,100W Laser Cleaning Machines
,5m 100w laser rust removal
-
Machine NameFiber Laser 100w Rust Removal
-
Product FunctionPainting, Oil, Rust Laser Cleaning
-
Product Power100W
-
ApplicationMolding, Ship, Car Parts, Metal Rust Removal
-
Laser Light Way180 Or 90 Degree Light
-
Laser BeamLaser Line Or Laser Circle
-
Power Consumption900W/Hour
-
Power Cable5 Meters
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-CL100
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsWooden box
-
Delivery Time7~15days
-
Payment TermsT/T
-
Supply Ability10 sets per month

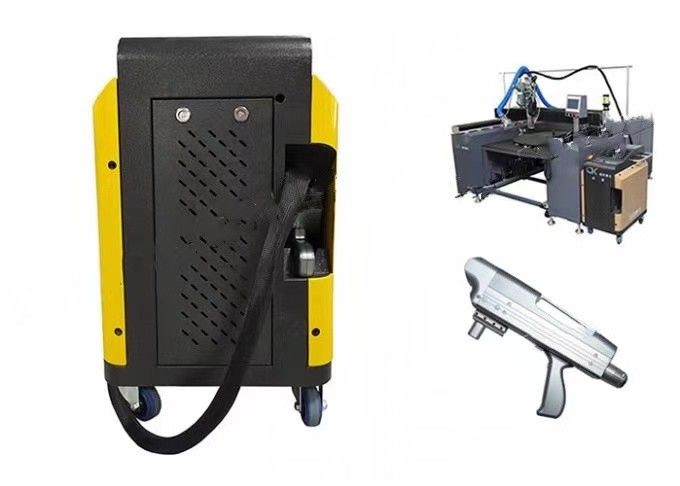

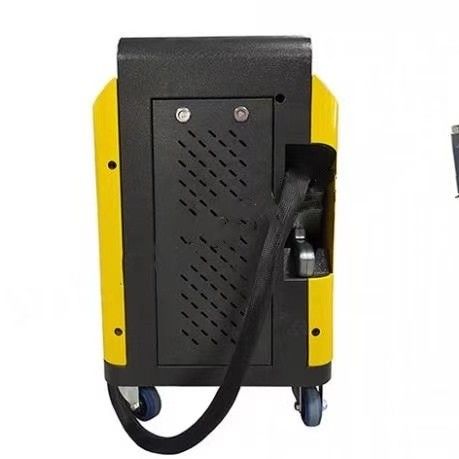

5m Laser Cleaning Machines Cable Mirror SS Welding Seam
5m Cable Mirror Surface SS Welding Seam Laser Cleaner Machine
Mirror Surface Stainless Steel Laser Cleaning Machine Welding Seam Laser Cleaner
The laser cleaning machine is easy to clean rust, paint, and oil. Easy to operate, turn on the power, run the device, then you can begin no chemical reagents, no contact, no media, dust-free, anhydrous cleaning, autofocus, fit surface cleaning, cleaning the surface cleanliness advantages, to clear the surface resin, Oil, dirt, dirt, rust, coating, coating, paint.
Product Datasheet
| Item | L/N | Characteristics | Test Conditions | Min. | Typical | Max. | Unit |
| Electrical Characteristics | 1 | Power Voltage | 220 | 210 | 220 | 230 | AC |
| 2 | Maximum current loss | Pout=Pnom | 4 | 5 | 6 | A | |
| 3 | Total Power | 600 | 590 | 600 | 610 | W | |
| 4 | Fiber Cable | 5 | 5 | 5 | 10 | M | |
| General Characteristics | 1 | Working temperature range | 0 | / | 60 | ℃ | |
| 2 | Storage temperature | -10 | / | 60 | ℃ | ||
| 3 | Laser power | 100 | W | ||||
| 4 | Peak power | >10KW | KW | ||||
| 5 | Cooling method | Air Cooling | |||||
| 6 | Laser level | 4 Class | |||||
| 7 | Pulse energy | 1.5mJ | mJ | ||||
| 8 | Laser wavelength | 1064 | nm | ||||
| 9 | Preheat time | Reach to start operation | 0 | s | |||
| Achieve complete stability | 10 | ||||||
| 10 | Humidity | 10 | / | 95 | % | ||
| 11 | Laser machine size | L647*W440*H859 | mm | ||||
| 12 | Weight | 70 | kg | ||||
Typical Features
| 1) Powerful, short pulses, fast-moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate. |
| 2) The focused laser beam is capable of accurately evaporating surface objects or dirt. |
| 3) Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser-treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface. |
| 4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily. |
Product Applications
| - Precise de coating of small areas |
| - Natural stone cleaning |
| - Rust/oxide removal |
| - Oil & grease removal/Cleaning oil deposits |
| - Paint & plating removal |
| - Pre-treatment to enhance adhesive bonding |
| - In-line baking plate cleaning |
| - Print rollers cleaning |
| - Weld seam pre-treatment/Removal preparation welding layers |
| - Industrial, military & shipyard - production intensive de-coating |
| - Nuclear de-contamination |
How does a fiber laser work?
Just as there is more than one type of cleaning process, there is also more than one type of laser process too. The three main types of laser are; crystal, gas, and fiber. Here at SPI Lasers, we only manufacture fiber lasers, and this type offers additional benefits over the other types of laser medium.
How does a fiber laser work? An optical fiber, which has been doped with the rare earth element of Erbium, acts as the beam source, this is able to achieve a high power, high-quality laser beam, but cost-effectively too.
Within this fiber is the laser medium, where the erbium atoms are contained. The photons that are emitted, to create the beam, are also within this fiber core. In this core, you’ll find a highly effective refracting system, called a Bragg Grating. The laser medium, Bragg Grating and pump source combined help to produce a high quality and stable laser beam.
Why is this better than using other types of laser?
There are many reasons that fiber lasers have quickly gained popularity over other types of laser. The fiber laser beam is generated inside the fiber itself, and so the beam produced is extremely stable. Other laser sources, on the other hand, rely on a fine alignment of mirrors, and should these be knocked, it can be hard to realign them.
The stable beam that is produced is also of an extremely high quality too. It’s straight, it can be highly accurate to a small degree, and it offers a high level of power too.
Finally, they are an efficient source too. They are easy to cool, have a much longer service life than other types of laser, and our ‘Fit & Forget’ technology means they’ll never need any maintenance either.
Applications:
Our services cover all industries and reach all parts of the world.
