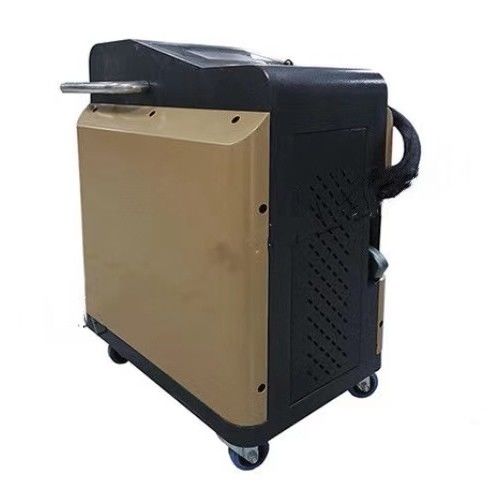

100w 200w 300w 500w 1000w Type Factory Price Metal Rust Removal Handheld Laser Cleaning Machine
The new laser industrial laser cleaning machine is small and portable, the cleaning process is very simple and rapid, the compact and push-able design can meet your needs for laser cleaning anywhere; and you can adjust the scanning from 1mm to 150mm according to your demands of cleaning different surface area.
Technical Parameters:
| Characteristics | Test Condition | Min.value | Typical value | Max.value | Unit |
| Operating Mode | Pulse | ||||
| Polarization | Random | ||||
| Laser Beam Mode | Customized for cleaning | ||||
| Output Power | 100% output power | 99.9 | 100 | 110 | W |
| Power Tunable Range | 50% | 100% | |||
| Central Wavelength | 100% output power | 1060 | 1064 | 1068 | nm |
| Pulse Width | 100% output power | 80 | 100 | 160 | ns |
| Long Time Power Stability | 100% output power | ±2 | ±5 | % | |
| Total Consumption | 480W (AC110V or 220V) | ||||
| Weight | 22.7KG | ||||
| Cooling | Forced air | ||||
The problems of Traditional cleaning industry:
|
Mechanical FrictionCleaning high cleanliness, damage base material |
Chemical Etching Cleaning unstressed cleaning, heavier pollution |
Fluid solid jet cleaning high flexibility, high cost complex effluent treatment |
High frequency ultrasonic cleaning good cleaning effect,limited size,dry workpeic |
Features of laser cleaning:
Laser cleaning——New technology,green and environmental:
Advantage:
Long-focus cleaning laser source has high surface roughness and high tolerance range of processing height on the workpiece, not only can be used in a stable industrial enviroment, more suitable for complex ourdoor fine cleaning; the use of special mode laser, both to ensure the high tolerance range of non-stable environment, but also efficient removal of rust stains with no hurt to base material.
Laser cleaning principle:
Fully enclosed external optical path system, combined with special mode of laser, the high-energy pulse laser collected in the surface of object,with the principles of plasma blasting,high energy pulse excitation and complex photochemical reactions, and by controlling the effective displacement of the laser beam to achieve cleaning. The whole process is controlled by the computer according to the program.
Application:

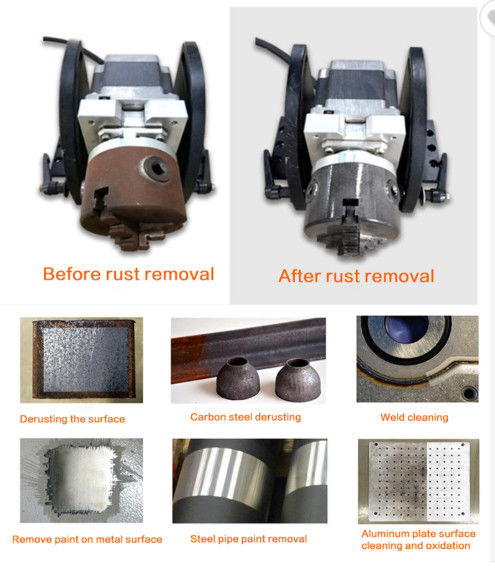

Typical Application - Rust Removal:
| Base material |
Corroded degree (mm) |
Cleaning effeciency (mm²/s) |
Valid focal depth (mm) |
Cleaning effect | Base matel damage |
|
Rusty carbon steel cast iron |
medium corrosion 0.05mm |
4000 | ＞45 | good | no |
Typical Application——Degrease:
| Base material |
Corroded degree (mm) |
Cleaning effeciency (mm²/s) |
Valid focal depth (mm) |
Cleaning effect | Base matel damage |
|
Greasy carbon steel
|
medium oil pollusion mild rusty |
35000 | ＞60 | good | no |
Typical Application——Paint Removal:
| Base material |
Corroded thickness (mm) |
Cleaning effeciency (mm²/s) |
Valid focal depth (mm) |
Cleaning effect | Base matel damage |
| white metal painting | ＞0.1 | 1500 | ＞30 | good | no |
Laser cleaning-working parameters:
| Base metal | Surface | Valid focal depth | Effeciency(mm²/s) | Effect |
| cast iron | severe corrosion(0.08mm) | >40 | 3000 | clean surface, no damage |
| carbon steel | mild corrosion(0.05mm) | >45 | 4000 | clean surface, no damage |
| stainless steel | oily, slight corrosion | >60 | 30000 | bright surface, no damage |
| mould steel gear | mild oily with scrap iron | >45 | 5000 | bright surface, no damage |
| aluminum steel | oxide/ surface spotting | >40 | 3000 | white surface, no damage |
| stoving varnish ss | white stoving varnish | >30 | 1000 | bright surface, no damage |
Core Laser Comparision:
| Laser Cleaning Source: | Advantage | Disadvantage |
| Solid Laser |
1.High power, high pulse energy, high cleaning efficiency 2.Wide range non-metallic material application 3.Excellent cleaning effect, excellent cleaning ability |
1. Large consumption, need high power chiller 2. Limited integration, complicated maintenance 3. Expensive and high cost. |
| Fiber Laser |
1.Free maintenance, high cost effective, low cost. 2.Forced air cooling, high stability of continuous using 3.Good laser beam mode, wide range metal application 4.Without light path problem, Flexibility integration, small and convenient 5.High photoelectric conversion rate, low consumption, energy saving and enviroment protection |
1.Low effective for thick coated metal 2.Power limited |
