High Light
3min Portable Rust Removal Machine
,10.1inch Portable Rust Removal Machine
,10.1inch handheld laser cleaning machine
-
Product Name100W High Efficiency Rust Removal Metal Fiber Laser Cleaning Machine
-
Cooling TypeAir Cooling
-
Pulse Energy1.5mj/pulse
-
SourceMaxphotonics
-
TypeFully Enclosed
-
Clean Speed6000mm/s
-
Brand NameHorizon Laser
-
ServiceOnline Service
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-CL100
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsWooden box
-
Delivery Time7~15days
-
Payment TermsT/T
-
Supply Ability10 sets per month

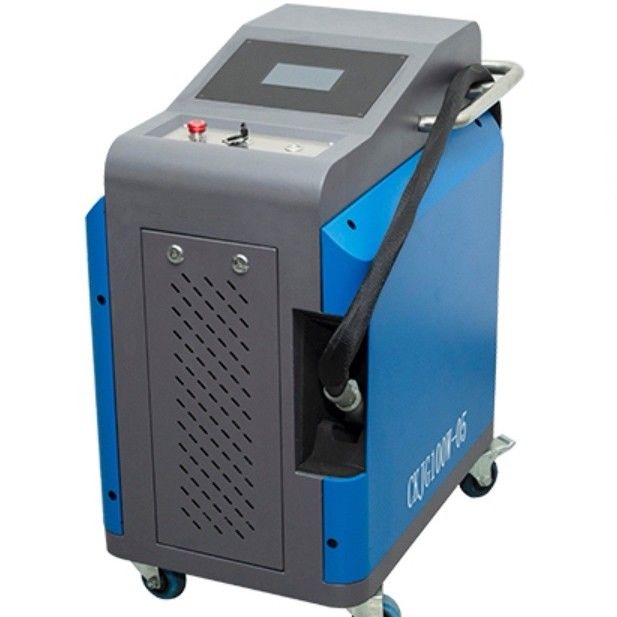

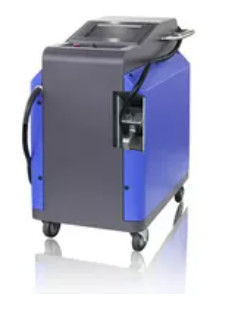

No Pollution 10.1inch 3min Portable Rust Removal Machine
Portable Metal Fiber Laser Cleaning Machine 100W High Efficiency Rust Removal
Horizon's laser cleaning machine is widely used in mould rust removal field.
The laser cleaner is small and portable, the cleaning process is very simple and rapid, the compact and push-able design can meet your needs for dust cleaning anywhere; and you can adjust the laser scanner from 1mm to 150mm according to different cleaning area.
Parameter
| Characteristic | Test Conditions | Minimum Value | Typical Value | Maximum | unit |
| Working Mode | pulse | ||||
| Output Power 70W | 100% power output | 68 | 70 | 75 | W |
| Power Adjustment Range | 5% | 100% | |||
| Central Wavelength | 100% power output | 1060 | 1064 | 1068 | nm |
| Pulse Width | 100% power output | 80 | 100 | 160 | ns |
| Long-term Power Stability | 100% power output | ±2 | ±5 | % | |
| Maximum Current Loss | Pout=pnom | 4 | 5 | 6 | A |
| Preheating Time | Achieve operation | 10 | S | ||
| Completely stable | 3 | min | |||
| Machine Power Consumption | 480W(AC110V or 220V) | ||||
| Range of Working Temperature | 0 | +40 | ℃ | ||
| Humidity | 10 | 96 | ℃ | ||
| Total Weight | 87 | Kg | |||
| Overall Size | 835*500*925(Length * Width * Height) | mm | |||
| Size of Cleaning Head | 100*100*400 | mm | |||
| Cable Length | 350 | cm | |||
| Storage Temperature | -10 | +60 | ℃ | ||
| Cooling Mode | Forced air cooling | ||||
| Control System | 10.1 Inch Touch Cleaning Control System | ||||
Main Features
1. Configure Maxphotonics laser with high beam quality and stable performance
2. Hand-held laser cleaning head, easy to use, lightweight and can be used for long hours
3. Adopts integrated design, compact and easy to install, can be operated by power
4. Wide range of material suitability, flexibility and efficiency for a variety of industrial processing scenarios
5. Has low requirements on working environment, stable system and maintenance-free, long service life
6. Non-contact processing, no consumables, no damage, no pollution
Samples
Our services cover all industries and reach all parts of the world.
