High Light
Exchange Table Fiber Laser Cutter
,Sheet Metal Fiber Laser Cutter
,30000W Fiber Laser Cutting Machine
-
Laser Type1000W MAX Fiber Laser Source
-
CNC SystemCypcut
-
Cutting And Focusing MethodManual / Automatic Focusing
-
Max Speed80m/min
-
Repeat Position Precision0.05
-
Warranty1 YEAR
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-D3015-1000W
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsSuitable for long-distance sea transportation
-
Delivery Time30 days
-
Payment TermsT/T, L/C
-
Supply Ability30 sets per month

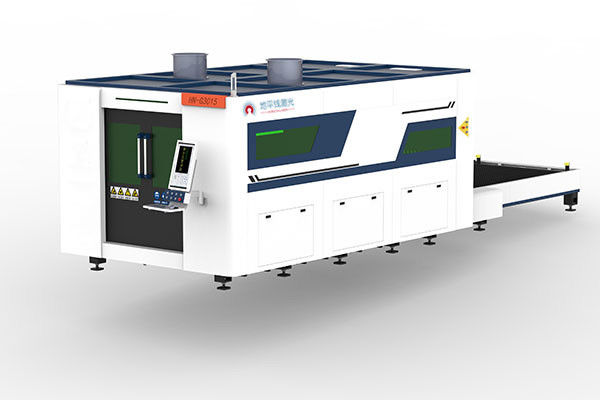

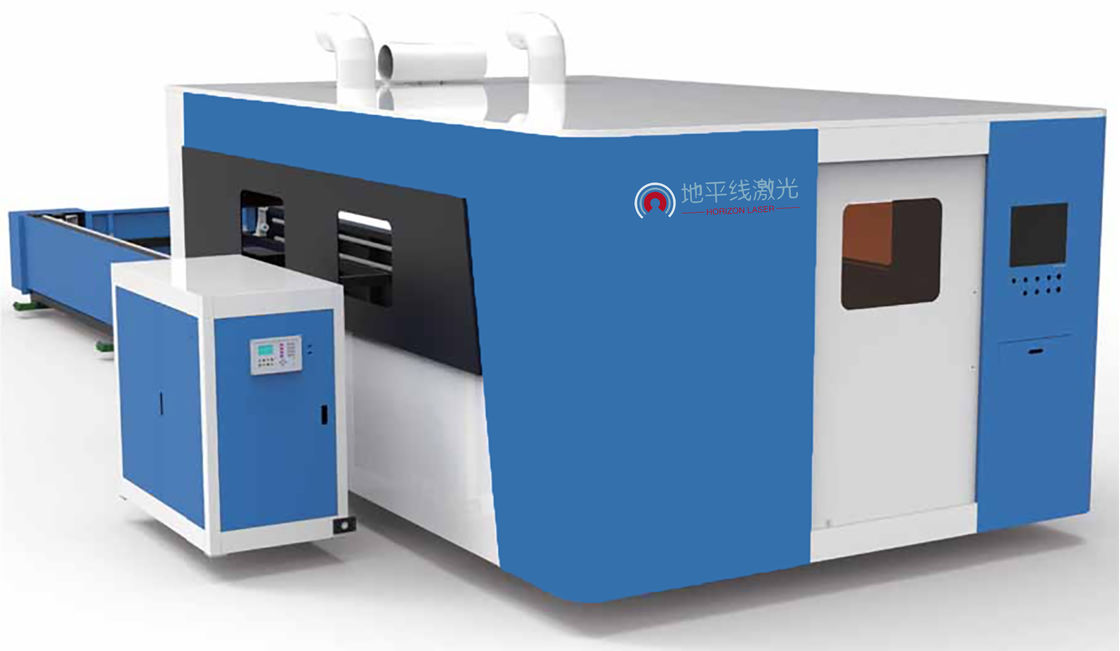

Exchange Table Fiber Laser Cutter 1000-30000W Sheet Metal 80m/ Min
Exchange table laser cutting machine 1000-30000W
Exchange table laser cutting machine comes with high processing efficiency. It adopts imported servo double-drive rack and pinion structure, parallel interactive worktables, and fully enclosed sheet metal outer protection. It is a laser cutting machine with superior performance and high-efficiency processing. Suitable for external processing or exclusive industry customer groups (aluminum sheet).
Features
One-click platform exchange, saving time and energy.
Double table design, cutting and loading & unloading can be carried out at the same time, ensuring uninterrupted processing all day long.
Full-enclosed protection and segmented follow-up dust removal design create a clean and friendly processing environment.
The high-strength bed combined with high-precision dynamic performance is specially designed for high-speed batch cutting of medium and thin plates.
Low power ( 1000-2000W )
Technical Parameters
| Laser power | 1000-2000W | ||
| Model | DPX-J3015 | DPX-J4020 | DPX-J6025 |
| Cutting range | 3000 × 1500mm | 4000 × 2000mm | 6000 × 2500mm |
| Cutting and focusing method | Manual / automatic focusing | ||
| Machine running accuracy | Acceleration: 1.0G | ||
| Maximum speed: 80m/min | |||
| Axial positioning accuracy of worktable: ± 0.05mm/m | |||
| Repeated positioning accuracy of worktable: ± 0.03mm/m | |||
Cutting performance
| Material | 1000W cutting performance | 1500W cutting performance | 2000W cutting performance | |||
| Carbon steel | stable cutting | ≤ 8mm | stable cutting | ≤ 12mm | stable cutting | ≤ 16mm |
| Limit cut | 12mm | Limit cut | 16mm | Limit cut | 20mm | |
| Stainless steel | stable cutting | ≤ 4mm | stable cutting | ≤ 6mm | stable cutting | ≤ 7mm |
| Limit cut | 6mm | Limit cut | 8mm | Limit cut | 10mm | |
