High Light
Single Platform Laser Cutting Machine
,80m/ Min Laser Cutting Machine
,2000W Cutting Engraving Machine
-
Laser Type1000W-2000W MAX Fiber Laser Source
-
Cutting HeadRaytools
-
Warranty1 YEAR
-
Cutting Thickness0-25mm
-
Maximum Speed80m/min
-
Repeat Position Precision0.05
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-D3015-1000W
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsSuitable for long-distance sea transportation
-
Delivery Time30 days
-
Payment TermsT/T, L/C
-
Supply Ability30 sets per month

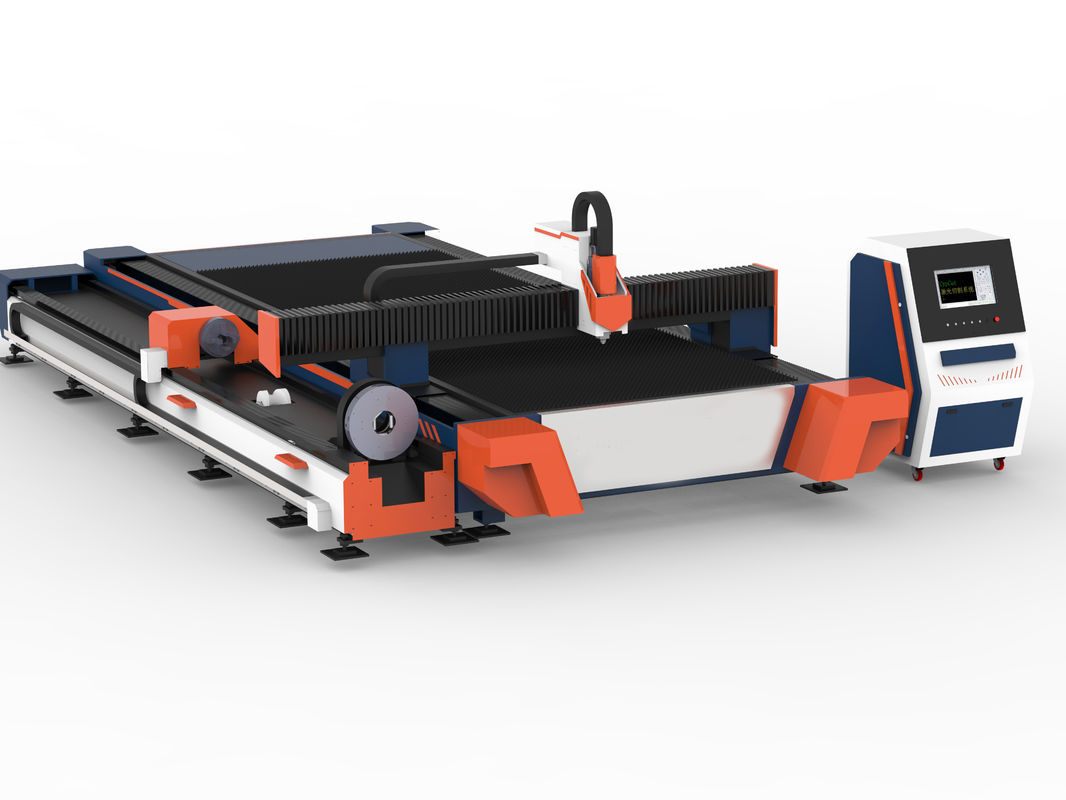

Single Platform Laser Cutting Machine 80m/ Min 1000-2000W
Single platform laser cutting machine 1000-2000W
The single-platform laser cutting machine has a small overall footprint and high cost performance. As an economical and practical laser cutting machine, it can be used by the majority of medium and thin plate customers who pursue quality and have limited budgets.
Features
A single cutting platform, the overall equipment is compact.
The operation panel and the electric control are integrated into one design, independent of the cutting table, and the operation is more convenient.
A variety of cutting formats are available to meet the blanking requirements of different sizes of plates.
Low power (1000W-2000W)
Technical Parameters
| Laser power | 1000-2000W | ||
| Model | DPX-D3015 | DPX-D4020 | DPX-D6025 |
| Cutting range | 3000 × 1500mm | 4000 × 2000mm | 6000 × 2500mm |
| Cutting and focusing method | Manual / automatic focusing | ||
| Machine running accuracy | Acceleration: 1.0G | ||
| Maximum speed: 80m/min | |||
| Axial positioning accuracy of worktable: ± 0.05mm/m | |||
| Repeated positioning accuracy of worktable: ± 0.03mm/m | |||
Cutting performance
| Material | 1000W cutting performance | 1500W cutting performance | 2000W cutting performance | |||
| Carbon steel | stable cutting | ≤ 8mm | stable cutting | ≤ 12mm | stable cutting | ≤ 16mm |
| Limit cut | 12mm | Limit cut | 16mm | Limit cut | 20mm | |
| Stainless steel | stable cutting | ≤ 4mm | stable cutting | ≤ 6mm | stable cutting | ≤ 7mm |
| Limit cut | 6mm | Limit cut | 8mm | Limit cut | 10mm | |
