1000W 1500W Fiber Laser Welding Machine Maxphotonics 220V With Half Weight
-
High Light
1500W Fiber Laser Welding Machine
,Maxphotonics Fiber Laser Welding Machine
,220V CNC Laser Welding Machine
-
Laser Power1000W/1500W
-
CoolingWater Cooling
-
Power Supply220V
-
Welding Thickness0.8-3mm/0.8-4mm
-
Laser SourceRaycus, Maxphotonics
-
Warranty1 Year
-
Weight110KG
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE, IEC60825, IEC60204
-
Model NumberDPX-W1500
-
Minimum Order QuantityNegotiation
-
PriceNegotiation
-
Packaging DetailsWooden box
-
Delivery Time3~5 days
-
Payment TermsT/T
-
Supply Ability100 sets per month
1000W 1500W Fiber Laser Welding Machine Maxphotonics 220V With Half Weight

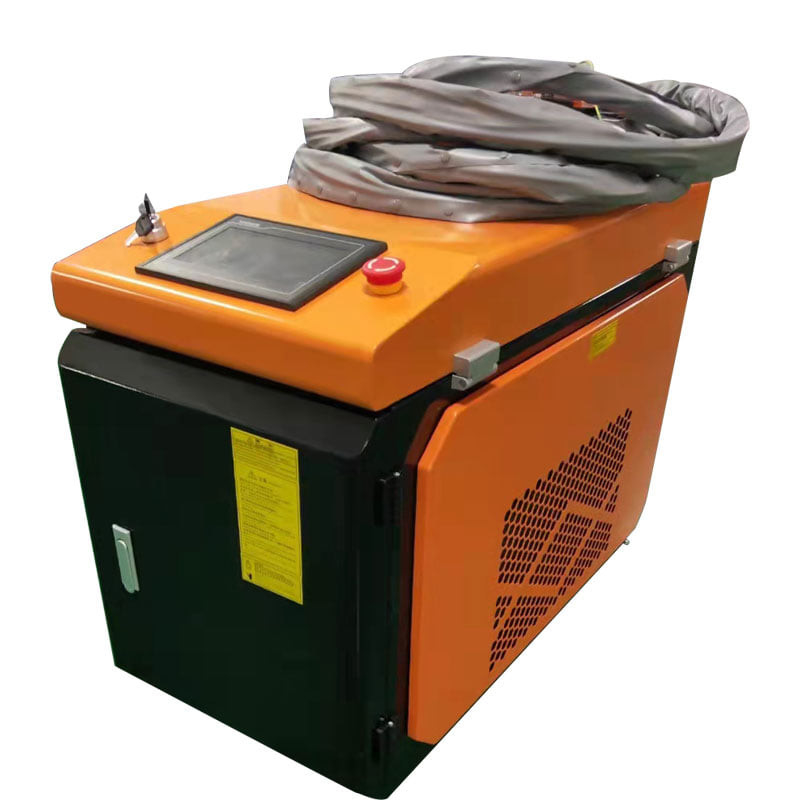

Small type 1000W/1500W fiber laser welding machine with half weight
The hand-held laser welding machine adopt a fiber laser source and transmit high-brightness laser through the fiber, obtain a high energy density output through the hand-held welding head. It is used for welding stainless steel, low carbon steel, aluminum alloy and other materials, and the operation is flexible and convenient.
The hand-held laser welding machine is integrated with fiber laser source, hand-held welding head, chiller, wire feeder, laser control system, and safety light emitting system. The overall design is small, beautiful, and easy to move. It is convenient for customers to choose a working place without being limited by space and scope. This machine can be used for welding applications in billboards, metal doors & windows, sanitary ware, cabinets, boilers, frames and other industries.
Technical Parameters
| Model | DPX-W1000 | DPX-W1500 | DPX-W2000 |
| Laser Source Type | CW fiber laser source(Wavelength: 1080±3nm) | ||
| Output Power | 1000W | 1500W | 2000W |
| Power Adjustment Range | 10%～100% | ||
| Welding Mode | Continuous Welding, Spot Welding | ||
| Adjustable Weld Width | 0.2～5 mm | ||
| Torch Cable Length | About 10m | ||
| Torch Weight | ＜1.2 kg | ||
| Dimensions(L*D*H) | 1000*550*700mm | 1200*600*1300mm | |
| Net Weight | 110kg | 250kg | |
| Power Consumption | <5kw | <7kw | <9.5kw |
| Operating Voltage | Single-phase 220VAC/ Three-phase 380VAC | ||
| Working Environment | Temperature:0～40℃,Humidity<70% | ||
| Safety Light Emission System |
1. Safely earth lock: the welding head can control the light emission only when the welding head touches the work-piece. 2. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low. 3. Welding gun firing button and laser shutter, double insurance to emit light. |
||
Features
Hand-held laser welding is 4 times faster than argon arc welding ;
One-time welding forming, smooth welding bead, no need for grinding;
Basically no consumables, standardized use, the protective lens can be used for several weeks;
You can get started in 4 hours and become skilled as an professional welder in one day;
Comes with air pressure detection alarm to avoid damage to the welding torch;
Welding Performance
| Recommended Welding Thickness for Different Materials | |||
| Model | DPX-W1000 | DPX-W1500 | DPX-W2000 |
| Stainless Steel | ≤3.0mm | ≤4.0mm | ≤6.0mm |
| Mild Steel | ≤3.0mm | ≤4.0mm | ≤6.0mm |
| Galvanized Sheet | ≤2.0mm | ≤3.0mm | ≤5.0mm |
| Aluminum Alloy | ≤2.0mm | ≤3.0mm | ≤4.0mm |
| Brass | ≤2.0mm | ≤3.0mm | ≤4.0mm |
| Note: The above is the maximum processing capacity of each model. | |||
