ABS PVC 30W Fiber Laser Marking Machine 1064nm Fiber Laser Marking Equipment
-
High Light
ABS PVC Fiber Laser Marking Machine
,30W Fiber Laser Marking Machine
,1064nm Fiber Laser Marking Equipment
-
Support SytemWindows
-
System Power Supply500W / 220V / 50Hz（Acceptable 110V）
-
Cooling MethodAir-cooling
-
Power(W)20W
-
Laser TypePulse Fiber Laser
-
Warranty Period1 Year
-
Dimensions390X210X615 Mm
-
Total Weight20KG
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-M20
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsCarton box
-
Delivery Time3~5 days
-
Payment TermsT/T
-
Supply Ability200 sets per month
ABS PVC 30W Fiber Laser Marking Machine 1064nm Fiber Laser Marking Equipment
30W Portable Mini Fiber Laser Marking Machine, high quality with low price
Products Description:

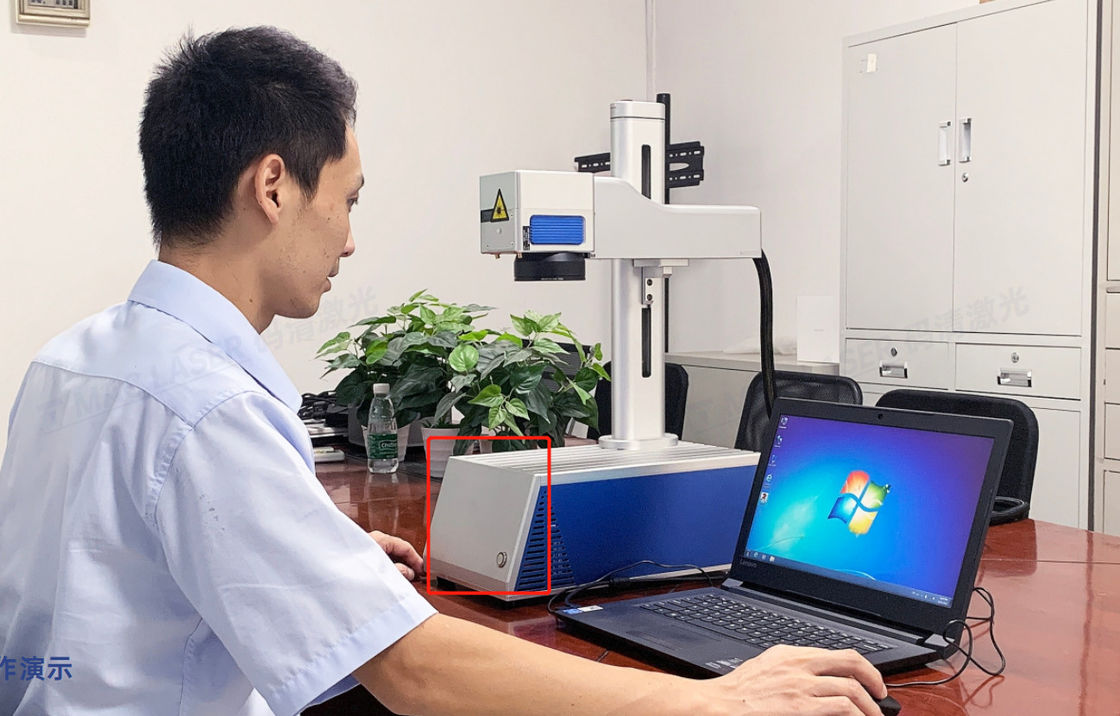

DPX-M series mini laser marking machine belongs to desktop fiber laser marking equipment. It is an economical model specially developed by Horizon Laser for the needs of simple, compact, flexible and convenient equipment. The equipment has the advantages of economical and affordable, high cost performance (computer is not included, you need to configure your own computer to use), the whole machine is small and easy to carry, compact and firm, detachable and foldable, and easy to carry. Its marking performance is comparable to that of a desktop machine. Easily meet most common laser marking applications.
DPX-M series products use fiber lasers with a wavelength of 1064nm, which are suitable for various metal materials such as iron, copper, aluminum, gold, silver, and some non-metallic materials such as PC, ABS, PVC, and PC+ABS. Widely used in 3C, auto parts, electronic components, integrated circuits (PC), electrical appliances, precision equipment, hardware, building materials, clocks, jewelry, craft gifts and other industries.
DPX-M series mini laser marking machine belongs to desktop fiber laser marking equipment. It is an economical model specially developed by Horizon Laser for the needs of simple, compact, flexible and convenient equipment. The equipment has the advantages of economical and affordable, high cost performance (computer is not included, you need to configure your own computer to use), the whole machine is small and easy to carry, compact and firm, detachable and foldable, and easy to carry. Its marking performance is comparable to that of a desktop machine. Easily meet most common laser marking applications.
DPX-M series products use fiber lasers with a wavelength of 1064nm, which are suitable for various metal materials such as iron, copper, aluminum, gold, silver, and some non-metallic materials such as PC, ABS, PVC, and PC+ABS. Widely used in 3C, auto parts, electronic components, integrated circuits (PC), electrical appliances, precision equipment, hardware, building materials, clocks, jewelry, craft gifts and other industries.
Parameters:
| Model | DPX-M20 | DPX-M30 | |
|
Laser parameters |
Laser model | MFP-20X/20QS | MAX 30 |
| Output Power | 18.5/20W | 30W | |
| Beam quality M2 | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |
| Laser wavelength | 1064±5 nm | ||
| Output power stability | ＜3% | ||
| Design life | About 100,000 working hours (non-lifetime) | ||
|
Optical properties |
Marking range | 100~150mm(Range optional) | |
| Engraving depth | ≤1mm(Depends on power and time) | ||
| Engraving speed | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Minimum marking line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
|
Use environment |
cooling method | Air-cooling | |
| System power supply | 500W / 220V / 50Hz(Acceptable 110V) | ||
| temperature humidity | 0~40°,30%≤RH≤85%,Air conditioner must be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
|
Other parameters |
support system | Windows | |
| Dimensions | 390X210X615 mm | ||
| Packing size | 680X5500X270 mm | ||
| Total Weight | Around 20kg | ||
