High Light
1520mm Fiber Laser Cutter
,1050mm Fiber Laser Cutter
,1520mm fiber laser cnc machine
-
Product NameAdvertising Metal Fiber Laser Cutting Machine Small Size 1070nm Wavelength
-
Laser SourceIPG
-
Working Area1050*1520mm
-
Control SoftwareCypcut
-
Electric Power SupplyAC380V 50Hz
-
Warranty1 YEAR
-
Cutting MetalStainless Steel, Carbon Steel, Aluminum, Brass
-
Cutting HeadRaytools
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-D1015
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsSuitable for long-distance sea transportation
-
Delivery Time15 days
-
Payment TermsT/T, L/C
-
Supply Ability30 sets per month

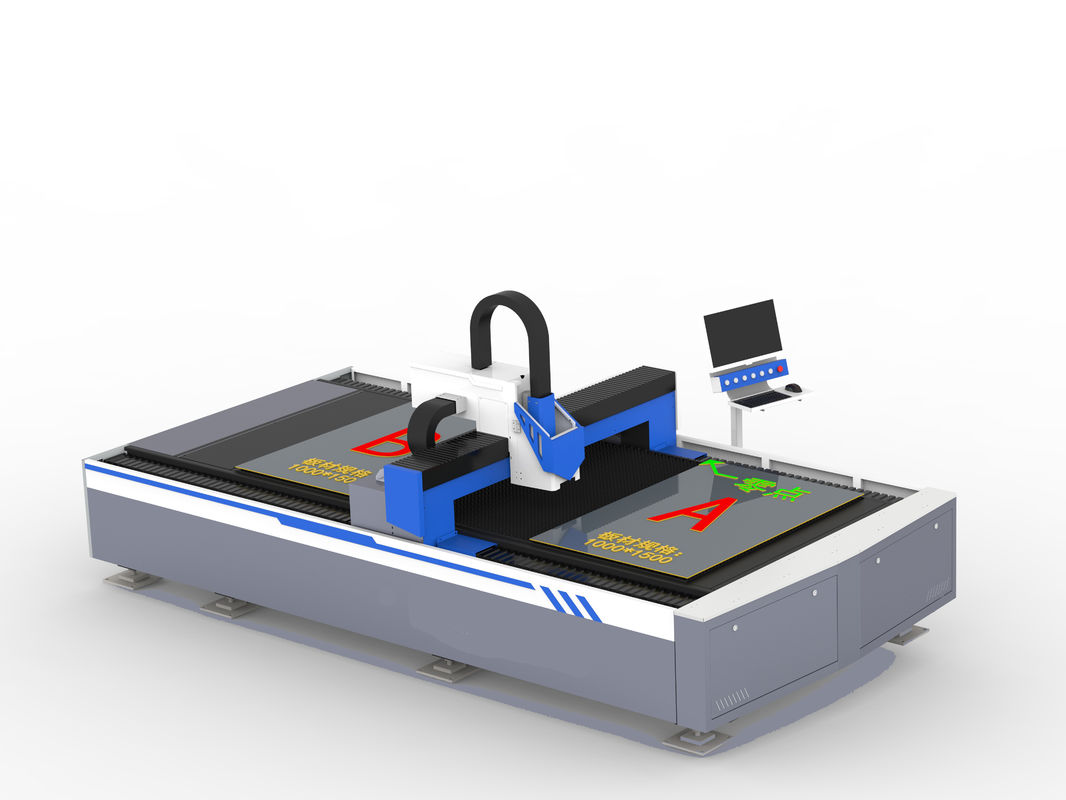

1050mm 1520mm Fiber Laser Cutter Stainless Steel Brass
Advertising Metal Fiber Laser Cutting Machine Small Size 1070nm Wavelength
Main configuration and technical advantage
DPX-D1015 serious fiber laser cutting machine adopts worldwide Famous Fiber laser source and cutting head & Focus System, fiber 1015 cutting machine can cut and punch different kind of metal material with high precision and high speed
Adjustable slope function to improve laser piercing quality
Cutting compensation function for line & circle cutting
Fly-piercing function with non-stop cutting which greatly improves the cutting efficiency for thin plates
Automatic plate edge detecting function for faster setup
Quick-change lenses are standard, with easily adjustable focal lengths.
Main Features:
· Excellent beam quality(BPP)
· Constant BPP in full power range
· Small laser beam
· Electro - optical conversion efficiency>30%
· Free maintanence
· Compact size,easy installation
· Lifespan >100,000 hours
· Integrated optical-optocoupler, or shutter
Tech Parameter:
| Item | Name | Quantity | Brand |
| Laser | fiber laser | 1 SET | IPG/Maxphotonics |
| Cutting head | Specialized cutting head | 1 SET | RayTools BT( Switzerland) |
| Machine bed | 1 SET | China | |
| Precise Rack | 1 SET | YYC | |
| Machine body | Precise linear guide rail | 1 SET | TAIWAN HIWIN |
| X,Y axis servo and driver | 1 SET | YASKAWA | |
| Reducer system | 1 SET | FRANCE MOTORREDUCER | |
| controller | 1 SET | FRANCE Schneider | |
| Machine bed accessories | 1 SET | CHINA | |
| Digital cutting system | Controller system | 1 SET | Shanghai cypcut /Shanghai Empower |
| Chiller | 1 SET | Teyu/TONGFEI/WORLDER | |
| Water recycling equipment | 1 SET | China |
Applications:
Our services cover all industries and reach all parts of the world.
