Auto Focus CW6300 600m Laser Cutting Machine For Steel

Auto Focus CW6300 600m Laser Cutting Machine For Steel

  • High Light

    600m Laser Cutting Machine For Steel

    ,

    CW6300 Laser Cutting Machine For Steel

    ,

    600m carbon fiber cutting machine

  • Power
    1000W/1500W/2000W
  • Laser Source
    IPG
  • Working Area
    3050*1520mm
  • Laser Wavelength
    1070-1090nm
  • Electric Power Supply
    AC380V 50Hz
  • Warranty
    1 YEAR
  • Weight
    3500kg
  • Cutting Head
    Raytools
  • Place of Origin
    China
  • Brand Name
    Horizon laser
  • Certification
    CE
  • Model Number
    DPX-D3015
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Suitable for long-distance sea transportation
  • Delivery Time
    20 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    30 sets per month

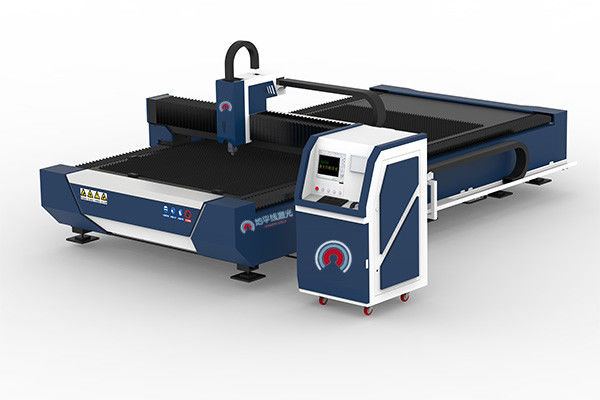

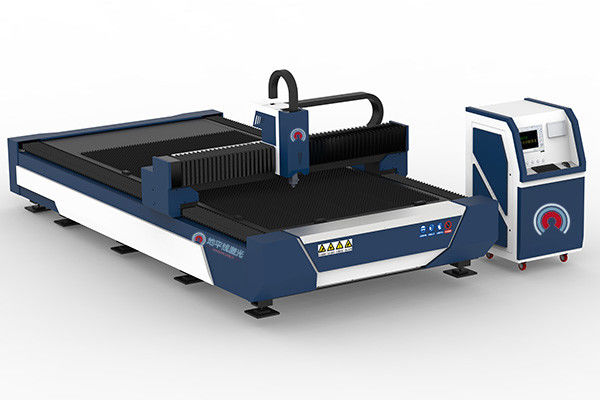

Auto Focus CW6300 600m Laser Cutting Machine For Steel

Single Platform Cnc Fiber Laser Cutting Machine , Metal Sheet Cutter 1000W 1500W 2000W

Main configuration and technical advantage:

  • Little to no maintenance costs

  • Parts process cost is very low

  • A "clean cut" surface quality is obtained

  • Fiber laser cutting is the fastest process for thin sheet metal

  • Reflective materials like aluminium,copper and brass can be cut with ease

  • Resonator life is over 100,000 working hours

Main Features:



1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Fast cutting speed save working time .
3. Energy saving and environmental protection;
4. Excellent quality of light beam:small focus facula, fine cutting line, high working efficiency,best processing quality.
5.Very low maintenance costs: optical fiber transmission, without reflection lens; can save a lot of maintenance costs;
6. Products easy operation : no need to adjust the optical path;
7. Flexible light guide effect: small size, compact structure and easy to meet flexible manufacturing requirements.



Technical Parameters:



Product name Fiber Laser Cutting Machine
Laser Type Fiber Laser
Working area(mm) 3050*1520mm
Cutting Head Raytools Auto-Focus (Swiss)
Laser power(W) 1000W/1500W/2000W
Driving and Transmission Way Servo Motor ,Gear Rack, Linear Guide Rail
Max running speed 600m/min
Positioning Accuracy ≤±0.05mm
Re-positioning Accuracy ≤±0.03mm
Working Power Supply 380V 50Hz
Working Table Rack working platform
Control System Cypcut control system
Location System Red dot indicator
Water Cooling System CW6300 Constant temperature water chiller
Max Acceleration 1G
Formats BMP,DXF,PLT,DST,CDR,GPEG
Cutting Depth According the power
Whole machine weight 3500KG
Transmission Precise pinion and rack,dual-drive transmitting





Product Application:



1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .





Auto Focus CW6300 600m Laser Cutting Machine For Steel 0



After-sales Service



1. We will supply instant online service to foreign customers. According to foreign customer's requirement, we are able to arrange for technicans to go abord to install or maintain the machine.

2. We offer free replacement within one year warranty if any damage under normal using condition.

3. We will offer software upgrade for free for life.

4. We will regularly evaluate the staff's service attitude to improve service quality.

5.Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype, whatsapp, etc for fast solution. We can offer technician go to customer's site for oversea service, customer shall cover visa, ticket, local living cost.
6. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance. During training in our workshop, we offer free training 7 days.
