High Light
0.5mm Handheld Laser Torch Welding
,QBH Handheld Laser Torch Welding
,4mm handheld fiber laser welder
-
Power1500W
-
Cooling TypeWater Cooling
-
Welding Thickness0.5~4mm
-
Laser SourceMaxphotonics
-
ServiceOnline Service
-
Warranty1 Year
-
Weight300KG
-
OEMSupport
-
Place Of OriginChina
-
Marketing TypeNew Product 2021
-
Core ComponentsLaser Source
-
Power SupplyAC 220V 50/60HZ
-
Welding TypeFiber Laser Welding
-
Wavelength1070nm
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-W1500
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsWooden box
-
Delivery Time3~5 days
-
Payment TermsT/T
-
Supply Ability100 sets per month
Water Cooling QBH 0.5mm Handheld Laser Torch Welding

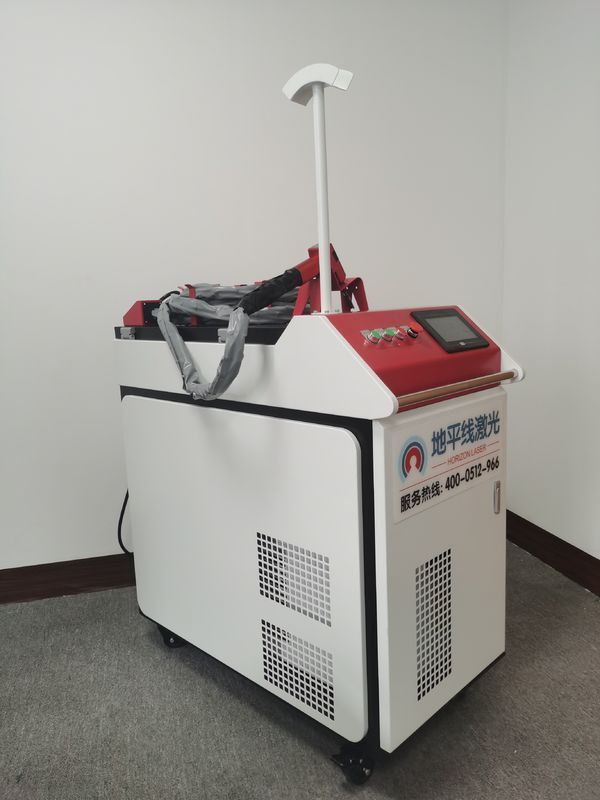

DPX-W1500 Portable Laser Welding Equipment For 0.5~4mm Metal Welding
Parameters:
| model | DPX-W1000 | DPX-W1500 | DPX-W2000 |
| Laser type | Continuous fiber laser | ||
| Rated output power | 1000W | 1500W | 2000W |
| Power adjustment range | 10%～100% | ||
| Laser center wavelength | 1080±3nm | ||
| output method | Continuous/modulation | ||
| Maximum modulation frequency | 50kHz | ||
| Power instability | <3% | ||
| Fiber output interface | QBH | ||
| Indicating system | Red light | ||
| Length of welding torch cable | 8m/15m | ||
| Torch type | Swing welding head | ||
| Collimated focal length | 60mm | ||
| Focus focal length | 150mm (optional) | ||
| Torch weight | About 0.8 kg | ||
| Protective gas | Coaxial protection | ||
| Adjustable weld width | 0～5 mm | ||
| product structure | All-in-one | ||
| Product size L*D*H | 1100*750*1580mm | ||
| product weight | 300kg | 350kg | |
| Working temperature | 0～40℃ | ||
| Working environment humidity | <70% | ||
| Operating Voltage | Single-phase 220VAC (must be grounded) / three-phase 380VAC (must be grounded) | ||
| Total power | <5kw | <7kw | <9.5kw |
Welding samples:
Advantages:
