High Light
8m Handheld Laser Welding Machine
,1000W SUS Handheld Laser Welding Machine
,3mm laser welder hand held
-
Name1000w Fiber Optic Handheld Metal Laser Welding Machine
-
Laser Power1000W 1500W 2000W
-
Welding Thickness Range0.5~6mm
-
Application MaterialMetal Materials
-
Cooling TypeWater Cooling
-
Power Supply220V
-
Warranty1 Year
-
Cable Length8m/15m
-
Place Of OriginShenzhen / Suzhou
-
Welding Head TypeDouble Pendulum, Adjustable Spot
-
Key Selling Points6 Welding Modes, Suitable For Welding Of Different Products
-
UsageWelding Metal Sheet And Tube
-
Core ComponentsLaser Source
-
Welding TypeFiber Laser Welding
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE, IEC60825,IEC60204
-
Model NumberDPX-W1000
-
Minimum Order QuantityNegotiation
-
PriceNegotiation
-
Packaging DetailsWooden box: 1260*740*1480mm 300kg
-
Delivery Time3~5 days
-
Payment TermsT/T
-
Supply Ability100 sets per month

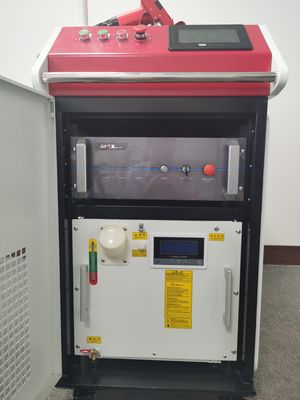

1000W 8m Handheld Laser Welding Machine For Stainless Steel
Factory Price OEM Hand held Laser Welder Handheld Laser Welding Machine System
Horizon laser welding machine can be widely used in metal equipment, stainless steel homeand other industries complex irregular welding process.
Parameters:
| Model | DPX-W1000 handheld laser welding machine |
| Laser Power |
1KW
|
| Laser Wave Length | 1080nm |
| Welding Speed | 0-120mm/s |
| Welding Gap | ≤1/5 of the thickness of sheet metal |
| Welding range | 0.5~6mm carbon steel,0.5~6mm stainless steel,0.5~3mm aluminium alloy,0.5~3mm brass |
| Fiber Length | Standard 8m |
| Cooling Mode | Water cooling |
| Electromechanical | 50HZ 220V optional |
1,High efficiency
Speed is faster than the traditional welding speed by more than two times.
2,High quality
Smooth and beautiful welding seam,without subsequent grinding, saving time and cost.
3,Low cost
80% to 90% power savings, processing costs are reduced by 30%
4,Flexible operation
Easy operation,no need experience can do a good job.
Application industry:
Welding in thin stainless sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes. Widely used in cabinet kitchen, staircase elevator, rack, oven, stainless steel door and window guardrail, distribution box, stainless steel household, metal sheet metal and other industries complex and irregular welding process.
Advantages
1.Output fiber laser power stability, electro-optical conversion rate up to 30%,Its conversion rate is 8 times of YAG.
2.Beam quality is excellent, non-Gaussian light, multi-module fiber transmission.
3.Maintenance-free operation.
4.Low cost of use,almost no consumptive material, daily maintenance-free,reducing the cost of debugging when production line stops.
5.Long lifetime, high precision, pump source lifetime more than 100,000 hours.
