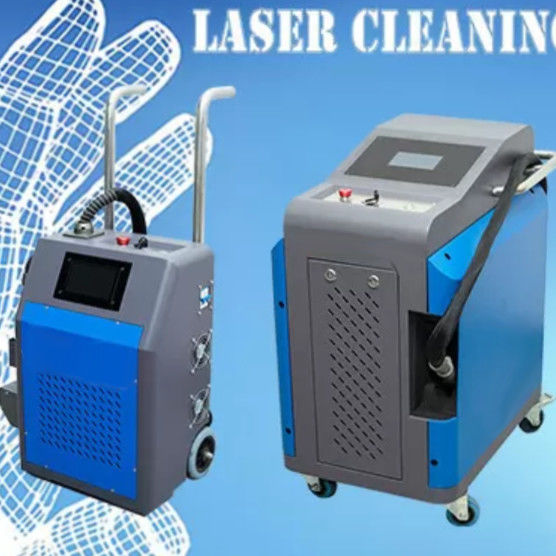

200W Laser Cleaning Machine for Mold Rust Coatings Removal
Product Description
Horizon Laser 100W laser cleaning machine is new generation of high-tech products, base not injured parts, consumable materials, energy conservation, environmental protection,efficient cleanup on the surface of resin, oil, dirt and stains, dirt, rust, coating, coating, paint,meet the industrial processing complicated shape, fine positioning cleaning requirements, achieve cleanliness higher cleaning effect, the comprehensive cost lower production efficiency.
Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relic repair, mold industry, shipping, food processing, petrochemical industry and other industries.
100 w and 200 w laser pulse laser cleaning, using optical fiber output, fully enclosed stable light path, the service life of more than 100000 consecutive hours, 2 years warranty, forced air cooling, the machine integrated power 480 w, environmental protection and energy saving, small and portable.
Cleaning samples:
Technical parameter
| Model | DPX-CL100 |
| Power | 100W |
| Supply voltage | Single-phase 220V ± 10%, 50 / 60Hz AC |
| Power consumption | 800W |
| Set the environment | Flat, no vibration, no impact |
| Working temperature | 0℃~40℃ |
| Work environment humidity | ≤80% |
| Fiber length | 5m(10 meters can be customized) |
| Cleaning head weight | 2KG |
| Move way | Hand pushing |
| Scanning width | 10-80mm |
| Laser average power | ≥100W |
| Output power instability | <3% |
| Power adjustment range(%) | 10-100(Adjustable gradient) |
| Focus spot diameter | 0.08mm |
| Center wavelength | 1064nm |
| repeat frequency | 20-200KHZ(Adjustable gradient) |
| Single pulse energy | 1.00mJ |
| Peak power maximum | 10kw |
| Spot diameter | 6.9mm |
| Pulse intensity | 0.10Watt/m2 |
| Cleaning efficiency | 5 m3/h |
| cooling model | Air cooling |
| Size | 850mm×700mm×880mm |
| Machine Weight | 140KG |
