High Light
50W Fiber Laser Marking Machines
,0.5ms Fiber Laser Marking Machines
,EZCAD Control Laser Cleaning Machine
-
KeywordsLaser Marking Machines
-
Working Area110*110mm (optional)
-
Repeated Accuracy±0.001mm
-
Laser Power50W
-
PackageWooden Case
-
Application MaterialMetal And Non-Metal
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-M50
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsWooden box
-
Delivery Time3~5 days
-
Payment TermsT/T
-
Supply Ability100 sets per month

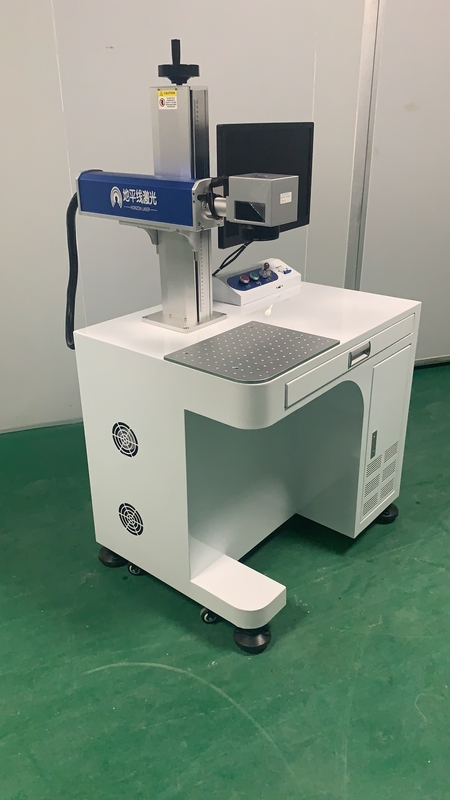

Rotary 0.5ms 20W 30W Fiber Laser Marking Machines EZCAD Control
50W Fiber Laser Marking Machines with Max Raycus laser source, rotary marking
Product Description
Fiber Laser Marking Machine focus on marking & engraving in a variety of metallic and nonmetallic surfaces. Max marking range can be optional based on your needs. : 110*110mm/150*150mm/175*175mm/300*300mm.
Are widely used in industrial: bearings, gears, and a variety of automotive parts, hardware and tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communications products.Home appliances, wire and cable, food packaging, jewelery, tobacco.
Jewelry, adornments, rings, necklace, bracelet and many other areas of graphics and text markup.
Components of automobiles and motorcycle, packaging of goods, drink and cigarette, Nameplate and etc.
2. Product Parameter (Specification)
| Model | DPX-20W/30W/50W |
| Laser Power | 20W/30W/50W/(Optional) |
| Working Area | 110*110 mm |
| Cooling Mode | Air Cooling |
| Laser Wavelength | 10.64 um |
| Response Time | 0.5ms |
| Frequency of pulse | 20-100 KHz |
| Marking Depth | ≤0.4 mm |
| Marking Speed | ≤7000 mm/s |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.002 mm |
| Resolution Ratio | 0.1 mm |
| Marking Content | Text, pattern, date, etc |
| Operation System | Microsoft Windows XP or Windows 10 |
| Control Software | EZCAD Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG,DXF, etc. |
| Unit Power | ≤1.2KW |
| Operation Temperature | 5°C-40°C |
| Relative Moisture | ≤ 90%, no fog |
| Supply Voltage | 220V/50Hz (110V/60HZ is optional) |
3. Application
The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.
Our services cover all industries and reach all parts of the world.
