High Light
1520mm Metal Fiber Laser Cutting Machine
,90m Metal Fiber Laser Cutting Machine
,1520mm metal tube cutting machine
-
Product NameMetal Fiber Laser Cutting Machine 1KW For All Kinds Of Metal Cutting
-
Laser SourceIPG/MAXPHOTONICS
-
Working Area3050*1520mm
-
Control SoftwareCypcut
-
Focus MethodFollowing And Automatic Adjust Focus
-
Warranty1 YEAR
-
X/Y Axis Positio0.05/1000mm
-
Cutting HeadRaytools
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-D3015
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsSuitable for long-distance sea transportation
-
Delivery Time15 days
-
Payment TermsT/T, L/C
-
Supply Ability30 sets per month

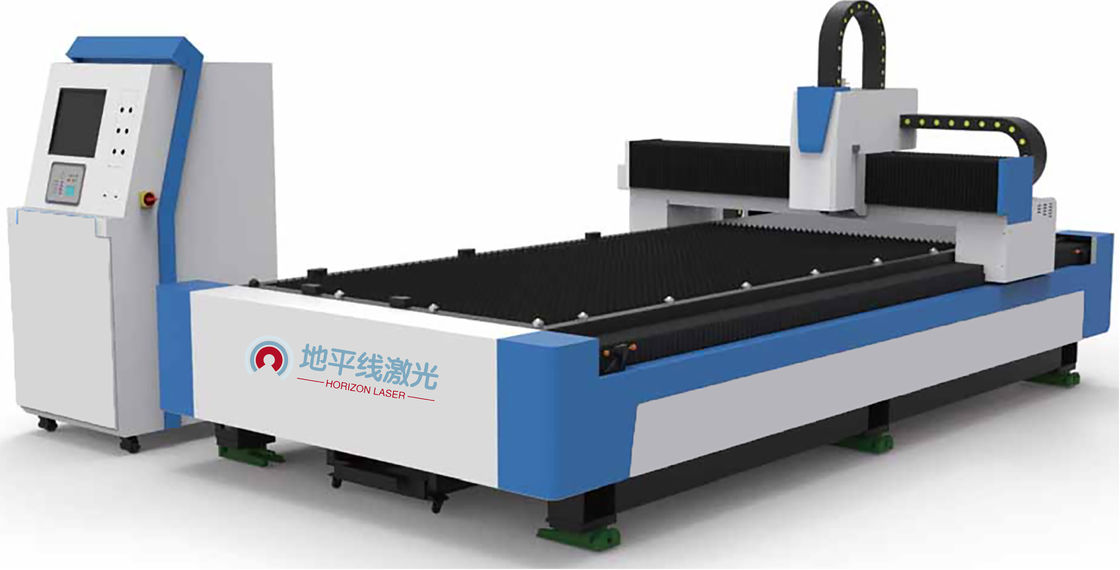

Raytools 90m 1520mm Metal Fiber Laser Cutting Machine
1.5KW Cnc Fiber Laser Cutter , Laser Cutting And Engraving Machine With Exchange Table
Product Description:
1.The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming.
2. Imported high precision ball screw transmission / rack & pinion, high precision linear guide rail.
3. Imported servo motor and drive, imported high-rigidity precision gearbox.
Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area.
4.Modular structure of laser generator, high performance and free from maintenance
Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.
| Parameter: | |
| Name | Fully Closed Type 1.5KW Metal Fiber Laser Cutting Machine With Exchange Tablewith protective cover |
| Model | DPX-J3015-1500 |
| Working area | 1500*3000mm |
| Laser power | 1500w |
| Laser type | Fiber laser |
| Cooling ways | Water cooling |
| Mininum line width | 0.1mm |
| Cutting speed | 0-35m/min |
| Max moving speed | 90m/min |
| Locating accuracy | ≤0.03mm |
| repeatable accuracy | ≤0.02mm |
| Maximum Acceleration | 1.5G |
| Controlling software | CYPCUT |
| Format supported | PLT,DXF,AI,G code,etc |
| Software environment | Windows xp/7/8/10 |
| Compatible software | Coreldraw,Autocad |
| Driving system | High precision servo motor with gear and rack |
| Auxiliary accessories | Exhaust fan,fume tubes,water chiller,tools box |
| Working table | Jagged blade working table (Sawteeth) |
| Applicable materials | Carbon steel,stainess steel,brass,copper,aluminum,etc |
| Power supply | 220v/380v/440v,50hz/60hz |
| Working environment Temperature | 0-45℃,Humidity5-95%(no condensate water.) |
| Continuous working time | 24 hrs each day |
| Dimension | 8150*2825*2125mm |
Fiber Laser Cutting Machine Application:
| 1.Sheet metal fabrication | 8. Hardware tools |
| 2. Electrical cabinet | 9. Advertising |
| 3. Elevator | 10. Furnitures |
| 4. Automotive parts | 11. Kitchenware equipment |
| 5. Aviation & aerospace | 12. Fitness equipment |
| 6. Lighting lamps | 13. Medical equipment |
| 7. Metal carfts & decoration | 14. Agricultural and forestry machinery |
Advantages over Other Cutting Machines:
1. The super high photo-electric conversion efficiency can be up to about 30%. So the machine runs with the lowest power consumption compared to other laser cutting machines under the same output power. So the cutting cost is the lowest.
2. With laser beam of good quality from double-clad fiber(DCF), the focus spot is superfine, and the cutting seam is very even and fine. Then the efficiency can be higher, and the quality is better.
3. The surface-area-to-volume ratio (SVR) of the gain medium is big.
4. The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser waveguide.
5. No laser working gas and can start cutting just by blowing air. And fiber optic transmission requires no need of reflector mirrors. In a word, the machine saves maintenance costs greatly.
6. The efficiency is very stable and reliable by adopting the diode pump laser module. No need to adjust the light path. So it’s easy to operate and maintain the machine.
7. Key units have the working life of 100 thousand hours.
8. High output power from 200 to 4000w can be customized.
9. The machine costs little water and energy. And the machine requires no gas. So the running cost is lower.
Applications:
Our services cover all industries and reach all parts of the world.
