Flexible Operation 380V 2000W Fiber Laser Welder

Flexible Operation 380V 2000W Fiber Laser Welder

  • Highlight

    2000W Fiber Laser Welder

    ,

    380V Fiber Laser Welder

    ,

    2000W fiber optic laser welding

  • Name
    2000W Handheld Fiber Laser Welder For Metals
  • Laser Power
    2000W
  • Welding Thickness Range
    0.5~5mm
  • Application Material
    Metal Materials
  • Usage
    Metal Welding
  • Power Supply
    380V
  • Warranty
    1 Year
  • Weight
    350kg
  • Cable Length
    15m
  • Place Of Origin
    Shenzhen
  • Welding Head Type
    Double Pendulum, Adjustable Spot
  • Key Selling Points
    6 Welding Modes, Suitable For Welding Of Different Products
  • Place of Origin
    China
  • Brand Name
    Horizon laser
  • Certification
    CE, IEC60825,IEC60204
  • Model Number
    DPX-W2000
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    Wooden box: 1260*740*1480mm 300kg
  • Delivery Time
    3~5 days
  • Payment Terms
    T/T
  • Supply Ability
    100 sets per month

Flexible Operation 380V 2000W Fiber Laser Welder

High Speed 2000W Handheld Fiber Laser Welder For Kitchen Industry



Product Description:

2000W handheld fiber Laser welder features the best fiber laser beam, high quality welding seam, high welding speed and without consumables. 2000W handheld fiber Laser welder is widely used in welding thin stainless steel, carbon steel, copper, brass, gold, silver, iron, aluminum, other sheet metals and metal tubes. The 2000W handheld fiber Laser welder will take over the traditional argon arc welding and electric welding technology.



Parameters:




Laser Power  2000W
Center Wavelength 1070+-5nm
Out Power Stability 2%
Laser Frequency 50Hz-5KHz
Adjustable Power Range 5-95%
Beam Quality 1.1
Optimal Operating Environment Temperature 10-35 ° C
Humidity 20% -80%
Electricity Demand  380V
Output Fiber Length 15m

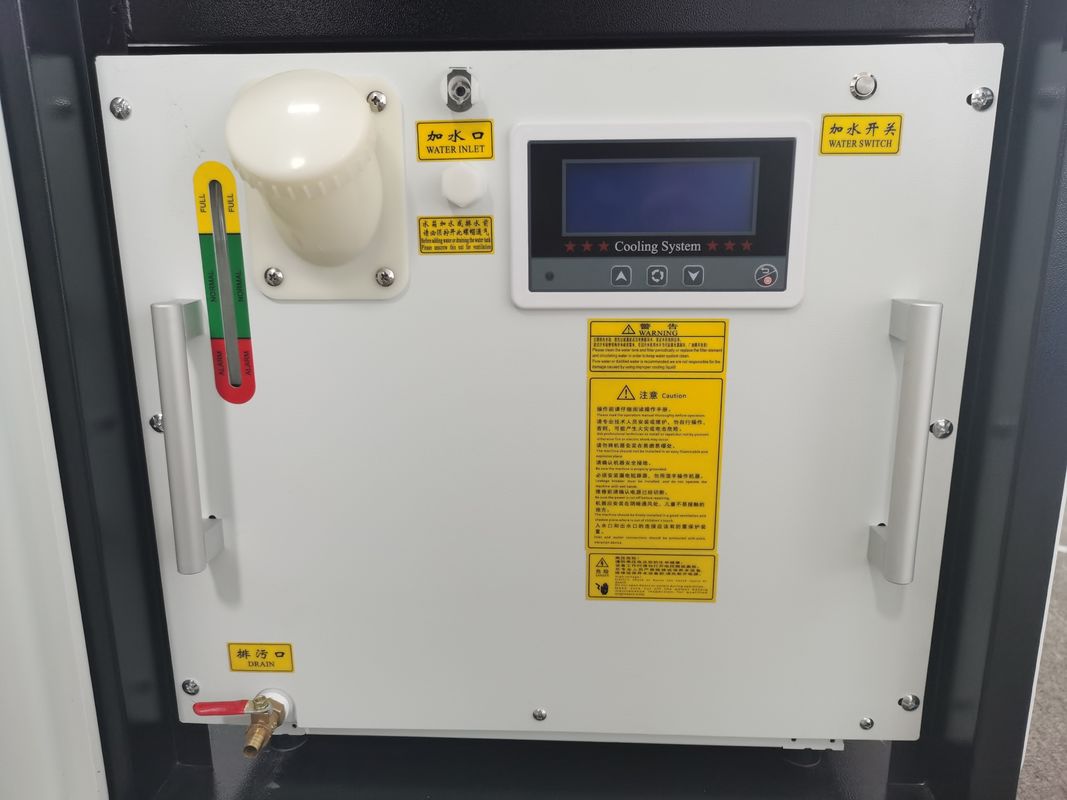

Cooling Method Water Cooling
Cooling Water Temperature 20-25 ° C





Applications:



Flexible Operation 380V 2000W Fiber Laser Welder 0

Advantages with 2000W handheld fiber Laser welder :


1.High efficiency

2.High quality

The welding spot is more uniform; so Better penetration;Perfect weld ; so Flat without blowhole

3.Low cost

80% to 90% power savings;Processing costs reduce to 70%

4 .Simple and flexible operation

So Overcoming the limitation of workbench space to realize the welding of any position at any Angle

At present, 2000W handheld fiber Laser welder have wide range of applications in the sanitary industry, glasses industry, hardware industry, automobile industry, medical industry, electronic industry, home, kitchen ware and sanitary industry, and gradually replace the traditional welding methods.





 SERVICE :



1.The company who initially provide 1 years warranty in the world,

2.24-hour full after sales service.

3.All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

4.OEM Service Customized and OEM orders are welcome due to our abundant experiences. All the OEM services are free.
