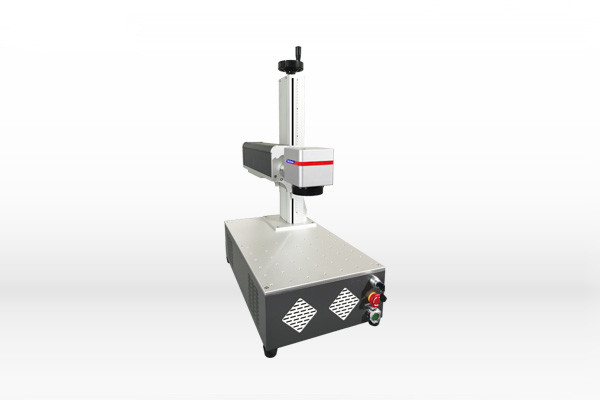

7000mm/S Laser Engraving Machine Air Cooling 1.2KW Auto Focus Bracket
-
High Light
Laser Engraving Machine Air Cooling
,7000mm/S Laser Engraving Machine
,1.2KW Portable Fiber Laser Engraver
-
Working Area110*110mm (optional)
-
Graphic Format SupportedAI,PLT,BMP
-
Cooling ModeAir Cooling
-
ConditionNew
-
Cnc Or NotYes,No
-
Control SoftwareEZCAD
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-M20
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsCarton box
-
Delivery Time3~5 days
-
Payment TermsT/T
-
Supply Ability100 sets per month
7000mm/S Laser Engraving Machine Air Cooling 1.2KW Auto Focus Bracket
Portable 20W Fiber Laser Marking Machine Mini model with high quality
Product Parameter (Specification)
| Model | DPX-20W/30W/50W |
| Laser Power | 20W/30W/50W/(Optional) |
| Working Area | 110*110 mm |
| Cooling Mode | Air Cooling |
| Laser Wavelength | 10.64 um |
| Response Time | 0.5ms |
| Frequency of pulse | 20-100 KHz |
| Marking Depth | ≤0.4 mm |
| Marking Speed | ≤7000mm/s |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.002 mm |
| Resolution Ratio | 0.1 mm |
| Marking Content | Text, pattern, date, etc |
| Operation System | Microsoft Windows XP or Windows 10 |
| Control Software | EZCAD Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG,DXF, etc. |
| Unit Power | ≤1.2KW |
| Operation Temperature | 5°C-40°C |
| Relative Moisture | ≤ 90%, no fog |
| Supply Voltage | 220V/50Hz (110V/60HZ is optional) |
Application
The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.
Product Description
Handheld portable laser marking machine fiber for metal 20W, with high conversion efficiency of electric-light, is mainly used to the field which requests high quality to deepness, smoothness and precision, such as horology, communication products images marking etc.
Compare with other types of lasers, this laser offers a handheld marking head which could be extended 2 meters away from power enclosure, the laser could be used in 2 scenario: either to integrate with flow line or for bulky substrate laser marking.
Main Features of Handheld Fiber laser marking machine
1. The whole machine is light weight, small size, easy to carry. The galvanometer can be rotated to 90 degrees according to the requirements of side marking, suitable for pipeline work.
2. Desktop and portable dual-use design, you can not only finish desktop fiber marking by a fixed bracket ,but also complete the hand-held marking by removable hand.
3. Comes with fixed auto-focus bracket ,easy to use, save time and labor.
4. Laser in the fiber wave by the increase in oscillation, good stability, free from external dust and mechanical loosening of the impact of the output of the laser beam stability.
5. Maintenance-free operation, the laser without any maintenance, do not have to adjust or clean the lens, no supplies.
6. the processing speed is fast, and the processing speed is 2-3 times of the traditional laser marking machine.
7. excellent Spot quality, high peak power, in the same material, the marking effect is best
8. Wear automatic lift platform, integrated air-cooled system, integrated design,with the beautiful appearance.
