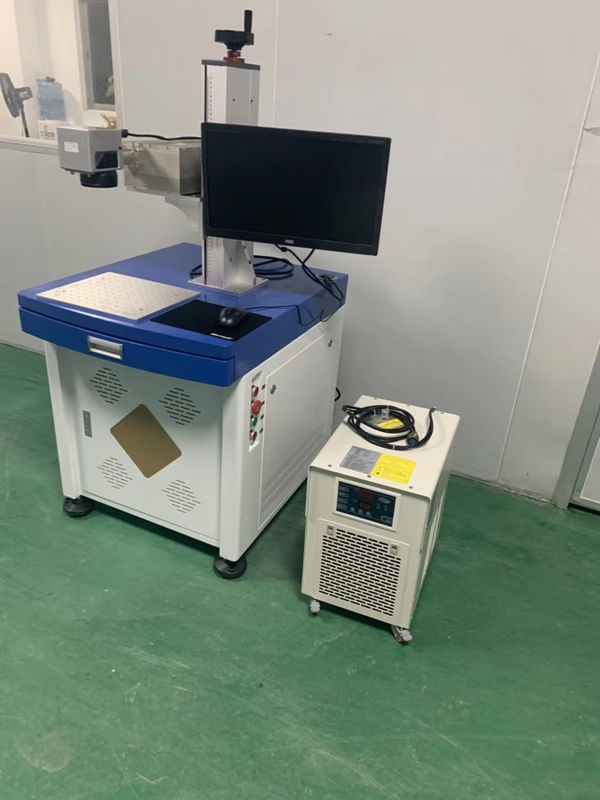

Product Features
1. Split and portable, occupy small space
2. Low power consumption
3. High power water chiller
4. Double red light focus, precise focus
Product Parameters
| No | ||
| 1 | Model | DPX-UV 3W/5W10W |
| 2 | Laser wavelength | 355nm |
| 3 | Average power | > 3W@40kHz |
| 4 | Pulse Repetition Rate | 20kHz-200kHz |
| 5 | Spatial Mode | TEM00 (M2 1.2) |
| 6 | Pulse Width | 15ns@ 40kHz |
| 7 | Working Materials | Nd:YVO4 |
| 8 | Beam-pointing Stability | 25μrad |
| 9 | Beam Roundness | 90% |
| 10 | Beam diameter | less 8mm |
| 11 | Beam Divergence | less 2mrad |
| 12 | Pulse to pulse stability | less 3%rms |
| 13 | Ambient temperature | 18-35 degree |
| 14 | Cooling | Water cooling |
| 15 | Power consumption | 1600W |
| 16 | Classification | Class4 |
Advantages
1. Cold processing marking: no thermal effect and material burning problem.
2. Good beam quality
3. Strong resistance to external temperature interference
4. Stable performance and fast marking speed
Applications
1. Laser Marking
2. Micro hole machining
3. Ceramic cutting
4. Thin film etching
5. Wafer cutting
Packaging & Shipping
FAQ
Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual . If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
