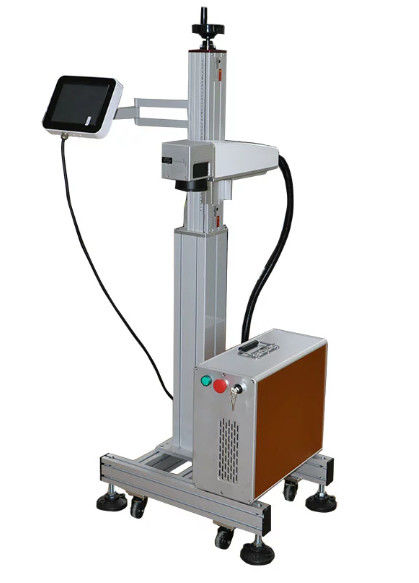

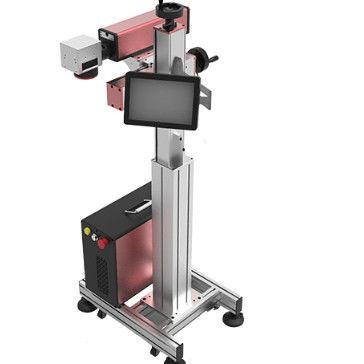

50HZ CO2 UV 0.01mm Laser Engraving Printing Machine

50HZ CO2 UV 0.01mm Laser Engraving Printing Machine

  • High Light

    UV Laser Engraving Printing Machine

    ,

    0.01mm Laser Engraving Printing Machine

    ,

    50HZ co2 laser etching machine

  • Laser Type
    Fiber Laser
  • Application
    Laser Marking
  • Working Accuracy
    <0.01mm
  • Place Of Origin
    Shenzhen Of China
  • Control Software
    EZCAD
  • Online Speed
    ≤120m/min
  • Power Supply
    220V/50Hz/12A
  • Power
    20W/30W/50W
  • Place of Origin
    China
  • Brand Name
    Horizon laser
  • Certification
    CE
  • Model Number
    DPX-F20/DPX-F30/DPX-F50
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Wooden box
  • Delivery Time
    3~5 days
  • Payment Terms
    T/T
  • Supply Ability
    100 sets per month

50HZ CO2 UV 0.01mm Laser Engraving Printing Machine

Fast Speed Flying Conveyor Fiber CO2 UV Laser Printing Engraving Marking Machine
Product Description

1.the surface of various substances permanently.
2.The marking effect is to show the deep material through the evaporation of the surface material, or to "carve" the trace through the chemical and physical changes of the surface material caused by the light,
3.or to burn part of the material by the light, showing all kinds of patterns, characters, barcodes and other graphics that need to be etched.

4.Air cooling, compact machine,output beam quality, high reliability, no consumables, maintenance-free.
5. Long life working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size,
power consumption is small, no high-voltage without large water-cooled system
6.Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed without distortion.





Parameter
Model DPX-20F/30F/50F/100F
Laser source Raycus
Laser power 20W,30W,50W,100W
Weave length 1064 nm
Marking area 110*110mm,175*175mm,220*220mm,300*300mm,500*500mm
Laser repetition frequency 20KHZ-80KHZ
Beam quality :1.5
Marking speed 7000-12000mm/s
Marking depth 0.01-1mm
Repetition Precision 0.01mm
Minimum Line Width 0.017mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Red light
Laser Module Life More than
Control software JCZ EZCAD 2.12 Professional fiber laser marking software
Supported Format PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC
Control board JCZ
Operating Voltage AC220V/50HZ/2A
Gross Power 500W
Supported Windows Windows XP,7,8,10
Certificate ISO, CE,
Material can be processed all metal material and part of non-metal material,such as hard plastic
Others USB cable for connection, Flash drive with software and English manuals.
After-sales Service

Warranty for 2 years.We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training. When you have any questions, no matter machine or operate, you can contact us directly.



Packaging Wooden box
Packaging Dimension 645*510*810mm
Gross weight 70kg
