High Light
2KW Fiber Laser Cutting And Engraving Machine
,3000mm Fiber Laser Cutting And Engraving Machine
,2KW carbon steel laser cutting
-
Product Name2KW Cnc Fiber Laser Cutter , Laser Cutting And Engraving Machine With Exchange Table
-
Laser SourceIPG/MAXPHOTONICS
-
Working Area3050*1520mm
-
Control SoftwareCypcut
-
Focus MethodFollowing And Automatic Adjust Focus
-
Warranty1 YEAR
-
X/Y Axis Positio0.05/1000mm
-
Cutting HeadRaytools
-
Place of OriginChina
-
Brand NameHorizon laser
-
CertificationCE
-
Model NumberDPX-D3015
-
Minimum Order Quantity1
-
PriceUSD
-
Packaging DetailsSuitable for long-distance sea transportation
-
Delivery Time15 days
-
Payment TermsT/T, L/C
-
Supply Ability30 sets per month

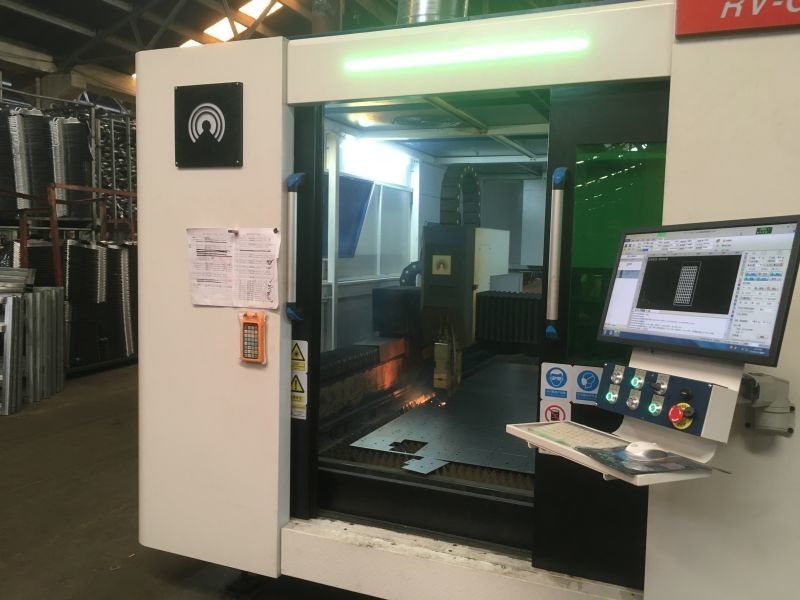

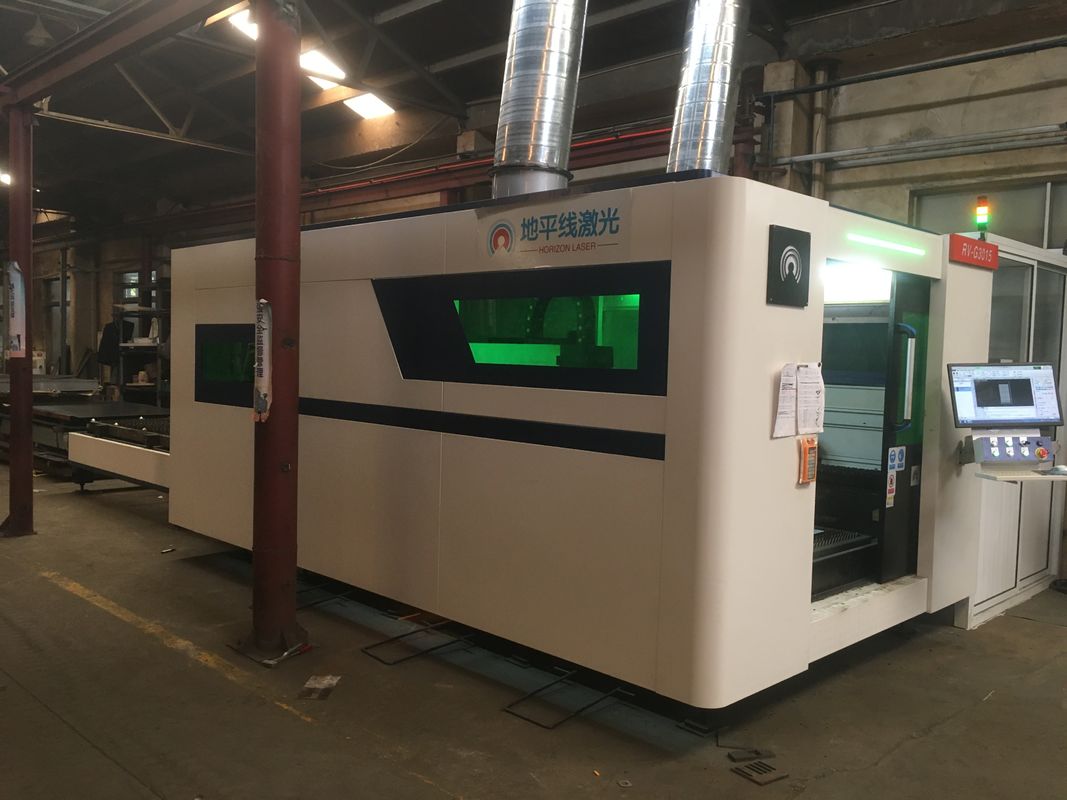

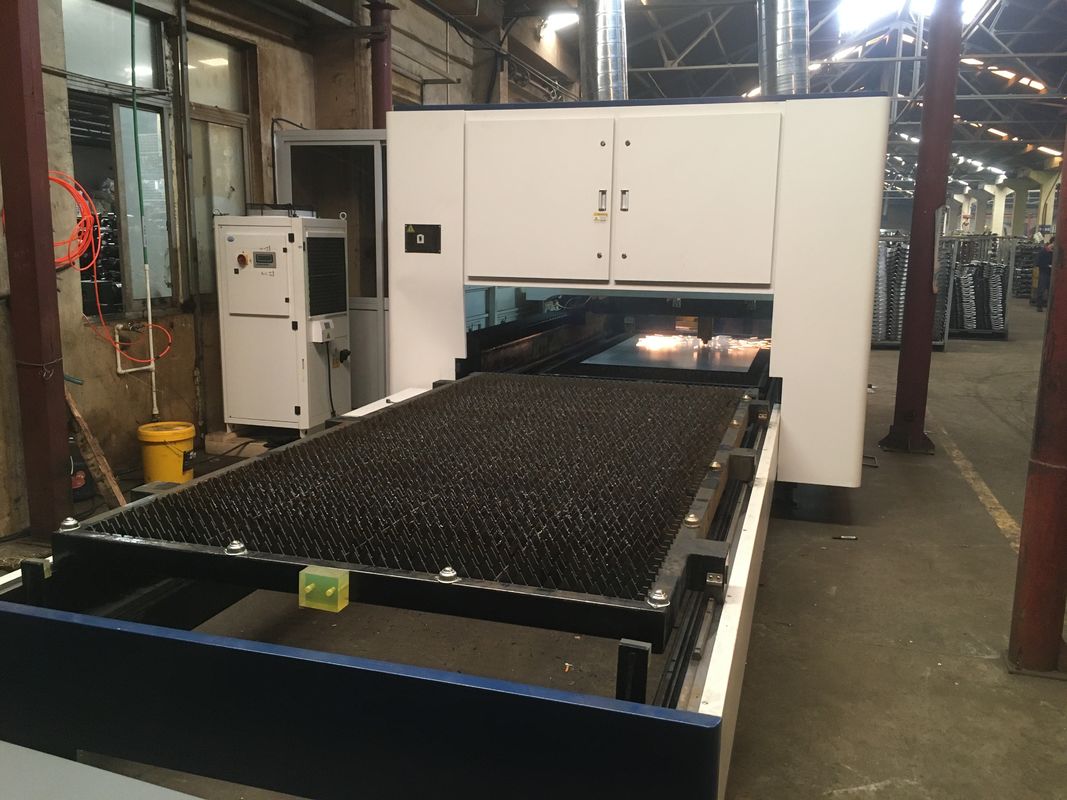

3000mm 2KW Fiber Laser Cutting And Engraving Machine
2KW Cnc Fiber Laser Cutter , Laser Cutting And Engraving Machine With Exchange Table
Fiber Metal Laser Cutting Machine Features:
The High-power laser cutting machine with the highest precision in China, it can cut metal door design with big size and perfectly cut up to 22mm mild steel,12mm stainless steel,10mm aluminum,5mm brass,4mm copper and 4mm galvanized steel sheets.
| Parameter: | |
| Name | Fully Closed Type 2KW Metal Fiber Laser Cutting Machine With Exchange Tablewith protective cover |
| Model | DPX-J3015-2000 |
| Working area | 1500*3000mm |
| Laser power | 2000w |
| Laser type | Fiber laser |
| Cooling ways | Water cooling |
| Mininum line width | 0.1mm |
| Cutting speed | 0-35m/min |
| Max moving speed | 90m/min |
| Locating accuracy | ≤0.03mm |
| repeatable accuracy | ≤0.02mm |
| Maximum Acceleration | 1.5G |
| Controlling software | CYPCUT |
| Format supported | PLT,DXF,AI,G code,etc |
| Software environment | Windows xp/7/8/10 |
| Compatible software | Coreldraw,Autocad |
| Driving system | High precision servo motor with gear and rack |
| Auxiliary accessories | Exhaust fan,fume tubes,water chiller,tools box |
| Working table | Jagged blade working table (Sawteeth) |
| Applicable materials | Carbon steel,stainess steel,brass,copper,aluminum,etc |
| Power supply | 220v/380v/440v,50hz/60hz |
| Working environment Temperature | 0-45℃,Humidity5-95%(no condensate water.) |
| Continuous working time | 24 hrs each day |
| Dimension | 8150*2825*2125mm |
Advantages over Other Cutting Machines:
1. The super high photo-electric conversion efficiency can be up to about 30%. So the machine runs with the lowest power consumption compared to other laser cutting machines under the same output power. So the cutting cost is the lowest.
2. With laser beam of good quality from double-clad fiber(DCF), the focus spot is superfine, and the cutting seam is very even and fine. Then the efficiency can be higher, and the quality is better.
3. The surface-area-to-volume ratio (SVR) of the gain medium is big.
4. The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser waveguide.
5. No laser working gas and can start cutting just by blowing air. And fiber optic transmission requires no need of reflector mirrors. In a word, the machine saves maintenance costs greatly.
6. The efficiency is very stable and reliable by adopting the diode pump laser module. No need to adjust the light path. So it’s easy to operate and maintain the machine.
7. Key units have the working life of 100 thousand hours.
8. High output power from 200 to 4000w can be customized.
9. The machine costs little water and energy. And the machine requires no gas. So the running cost is lower.
Applications:
Our services cover all industries and reach all parts of the world.
