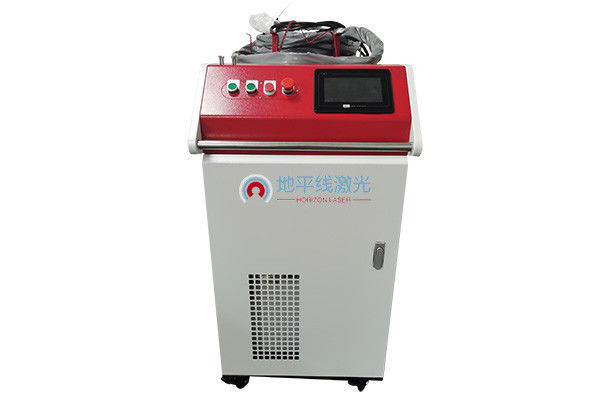

1500W Handheld Laser Welding Machine
Parameters:
| model | DPX-W1000 | DPX-W1500 | DPX-W2000 |
| Laser type | Continuous fiber laser | ||
| Rated output power | 1000W | 1500W | 2000W |
| Power adjustment range | 10%～100% | ||
| Laser center wavelength | 1080±3nm | ||
| output method | Continuous/modulation | ||
| Maximum modulation frequency | 50kHz | ||
| Power instability | <3% | ||
| Fiber output interface | QBH | ||
| Indicating system | Red light | ||
| Length of welding torch cable | 8m/15m | ||
| Torch type | Swing welding head | ||
| Collimated focal length | 60mm | ||
| Focus focal length | 150mm (optional) | ||
| Torch weight | About 0.8 kg | ||
| Protective gas | Coaxial protection | ||
| Adjustable weld width | 0～5 mm | ||
| product structure | All-in-one | ||
| Product size L*D*H | 1100*750*1580mm | ||
| product weight | 300kg | 350kg | |
| Working temperature | 0～40℃ | ||
| Working environment humidity | <70% | ||
| Operating Voltage | Single-phase 220VAC (must be grounded) / three-phase 380VAC (must be grounded) | ||
| Total power | <5kw | <7kw | <9.5kw |
Welding samples:
Advantages:
Our services cover all industries and reach all parts of the world.
