1064nm 110mm Laser Marking And Engraving Machine

1064nm 110mm Laser Marking And Engraving Machine

Products - Laser Marking Machines
  • High Light

    110mm Laser Marking And Engraving Machine

    ,

    1064nm Laser Marking And Engraving Machine

    ,

    CCC fiber laser etching machine

  • Application
    Laser Marking
  • Laser Type
    Fiber Laser
  • Certification
    CE
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas
  • Warranty Period
    1 Years
  • Place Of Origin
    Shenzhen, China
  • Power(W)
    20W/30W/50W
  • Brand Name
    Horizon Laser
  • Working Accuracy
    0.01mm
  • Place of Origin
    China
  • Brand Name
    Horizon laser
  • Certification
    CE
  • Model Number
    DPX-P20
  • Minimum Order Quantity
    1
  • Price
    USD
  • Packaging Details
    Wooden box
  • Delivery Time
    3~5 days
  • Payment Terms
    T/T
  • Supply Ability
    100 sets per month

1064nm 110mm Laser Marking And Engraving Machine

  • 1064nm 110mm Laser Marking And Engraving Machine
  • 1064nm 110mm Laser Marking And Engraving Machine
Get Price Contact Now

New Condition 110*110mm 220v industrial laser marking machine



Products Description:



1.Q-switched fiber laser source. Precision transmission system and high precise repeat positioning precision ensure perfect marking performance.

2.We can use CNC machine body to move the galvo head to reach large size marking, also we use moving table and fix galvo head to reach large size marking.

3.The working size can be customized.

4.Servo motors & Ball screw or stepper motor & belt

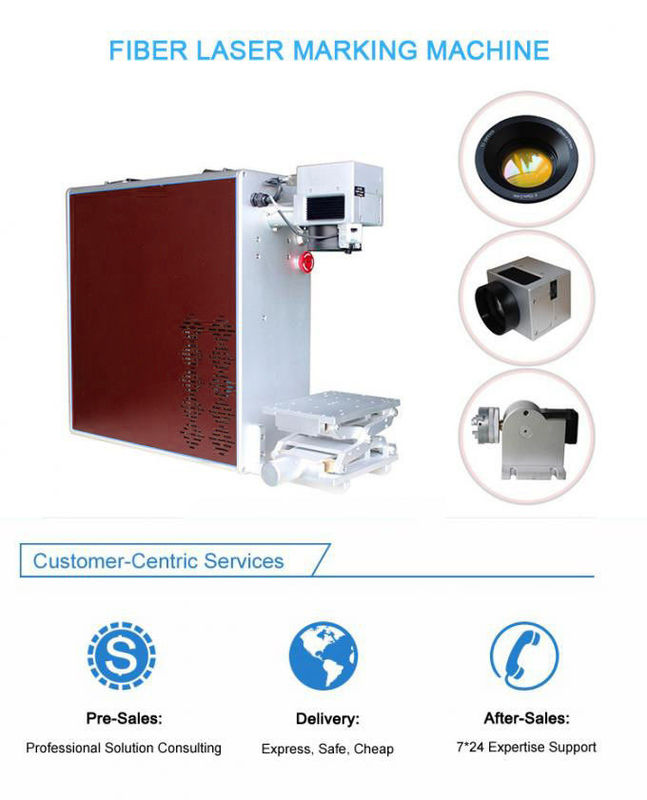

1064nm 110mm Laser Marking And Engraving Machine 0



Advantages:

1. Marking high precision spare parts, such as Gold, Silver, Jewelry, Electronic spare parts etc.

2. High speed marking speed and perfect marking effects.

3. Working time: 100,000 hours , without any consumptive materials.

4. No consumables, low-power, power consumption is less than 500W.

5. High speed, high repeat positioning accuracy.

6. Life span up to 100,000 hours, can move with any workplace.

9. High precision scale.



Technical Parameters:



Product Fiber Laser Marking Machine
Fiber Laser Brand Standard: MAX
Fiber Laser Lifetime 100,000 hours
Fiber Laser Power 20W, 30W, 50W
Beam Quality M2≤1.2
Max. Marking Speed 12000mm/s
Laser Wavelength 1064nm
Marking Area Standard: 110mm*110mm
Optional: 70mm*70mm, 150mm*150mm, 200mm*200mm, 300mm*300mm
High-speed Galvanometer Yes
Lens F-Theta Lens
Fiber Laser Repetition Frequency 20KHz-80KHz
Minimum Character 0.05mm
Marking Depth ≤5mm
Repeated Accuracy ±0.001mm
Minimum Linewidth 0.01mm
Positioning accuracy 0.01mm
Repeatability 0.01mm
Volt 110V, 220V, or according to your request
Cooling Mode Air Cooling
Graphic Format Supported PLT, DXF, DXP, AI, GIF, TGA, PNG, TIF, TIFF, DST, DWG, LAS, SDT,BMP,JPG,JPGE ,etc
Software Supported CORELDRAW, AUTOCAD, PHOTOSHOP, etc
System Supported Windows, MAC OS
Operating Ambient Temperature 5°C-45°C
Marterial Supported Metal and Some Non-metal
Marking Software EZCAD
Desktop Computer Yes
Training Videos, User Manua Yes
Warranty 2 years
Fiber Test Results Yes
Certificates FDA, CE, ISO,RoHS, EUT, FC,CCC,PSE,IC
USB 2.0 Compatible YES
Size (L*W*H) 720mm*210mm*510mm
Weight 40KG
Optional Laptop, Rotary Device
Packing Wooden case





Application

  • Electronics and communication tools
  • IC chips,computer accessories and electrical appliances,all kinds of precise components
  • Hardware tools,instrument and meter
  • Aerospace devices
  • Jewelry
  • Clocks,gifts
  • Office supplies,trademark signs
  • Sanitary ware,table ware
  • Food,beverages,tobacco and alcohol
  • Many other industries for marking logos,symbols,words
  • Also can be used in production line for mass quantities work.



1064nm 110mm Laser Marking And Engraving Machine 1
